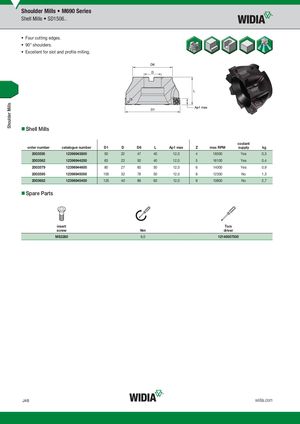

Shell Mills SD1506..
- Four cutting edges.
- 90° shoulders.
- Excellent for slot and profile milling.
- Shell Mills
coolant
| order number | catalogue number | D1 | D | D6 | L | Ap1 max | Z | max RPM | supply | kg |
| 2003555 | 12396943800 | 50 | 22 | 47 | 40 | 12,0 | 4 | 18500 | Yes | 0,3 |
| 2003562 | 12396944200 | 63 | 22 | 50 | 40 | 12,0 | 5 | 16100 | Yes | 0,4 |
| 2003579 | 12396944600 | 80 | 27 | 60 | 50 | 12,0 | 6 | 14000 | Yes | 0,9 |
| 2003595 | 12396945000 | 100 | 32 | 78 | 50 | 12,0 | 8 | 12300 | No | 1,3 |
| 2003682 | 12396945400 | 125 | 40 | 89 | 63 | 12,0 | 9 | 10800 | No | 2,7 |
- Spare Parts
insert Torx
| screw | Nm | driver | |
| MS2260 | 6,0 | 12148007500 |
