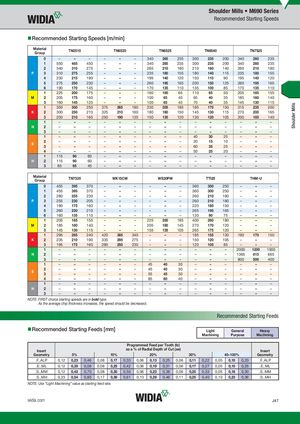

- Recommended Starting Speeds [m/min] Material
TN2510 TN6520 TN6525 TN6540 TN7525
Group
| 0 | – | – | – | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 340 | 260 | 235 | |
| 1 | 550 | 485 | 450 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 340 | 260 | 235 | |
| 2 | 340 | 310 | 275 | – | – | – | 265 | 210 | 180 | 210 | 160 | 140 | 260 | 210 | 180 | |
| P | 3 | 310 | 275 | 255 | – | – | – | 235 | 180 | 155 | 180 | 140 | 115 | 235 | 180 | 155 |
| 4 | 230 | 215 | 190 | – | – | – | 195 | 140 | 120 | 150 | 110 | 90 | 195 | 140 | 120 | |
| 5 | 275 | 250 | 230 | – | – | – | 260 | 195 | 165 | 200 | 150 | 125 | 260 | 195 | 165 | |
| 6 | 190 | 170 | 145 | – | – | – | 170 | 135 | 110 | 135 | 100 | 85 | 170 | 135 | 110 | |
| 1 | 225 | 200 | 175 | – | – | – | 160 | 100 | 65 | 110 | 65 | 50 | 205 | 185 | 155 | |
| M | 2 | 205 | 175 | 160 | – | – | – | 100 | 65 | 40 | 65 | 40 | 35 | 185 | 160 | 140 |
| 3 | 160 | 145 | 125 | – | – | – | 105 | 65 | 45 | 70 | 40 | 35 | 145 | 130 | 115 | |
| 1 | 350 | 300 | 250 | 375 | 265 | 190 | 230 | 205 | 185 | 185 | 170 | 150 | 315 | 235 | 200 | |
| K | 2 | 300 | 250 | 210 | 325 | 210 | 160 | 180 | 160 | 150 | 145 | 130 | 115 | 270 | 200 | 165 |
| 3 | 250 | 210 | 165 | 250 | 190 | 135 | 150 | 135 | 120 | 130 | 120 | 105 | 200 | 165 | 140 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | 40 | 30 | 25 | – | – | – | |
| 2 | – | – | – | – | – | – | – | – | – | 20 | 15 | 10 | – | – | – |
S
| 3 | – | – | – | – | – | – | – | – | – | 60 | 35 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 50 | 25 | 20 | – | – | – | |
| 1 | 115 | 90 | 60 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | 115 | 90 | 60 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 85 | 65 | 45 | – | – | – | – | – | – | – | – | – | – | – | – |
Material
TN7535 WK15CM WS30PM TTI25 THM-U
Group
| 0 | 455 | 395 | 370 | – | – | – | – | – | – | 360 | 300 | 250 | – | – | – | |
| 1 | 455 | 395 | 370 | – | – | – | – | – | – | 360 | 300 | 250 | – | – | – | |
| 2 | 280 | 255 | 230 | – | – | – | – | – | – | 260 | 210 | 180 | – | – | – | |
| P | 3 | 255 | 230 | 205 | – | – | – | – | – | – | 260 | 210 | 180 | – | – | – |
| 4 | 190 | 175 | 160 | – | – | – | – | – | – | 220 | 180 | 150 | – | – | – | |
| 5 | 260 | 230 | 210 | – | – | – | – | – | – | 265 | 195 | 165 | – | – | – | |
| 6 | 160 | 135 | 110 | – | – | – | – | – | – | 120 | 90 | 75 | – | – | – | |
| 1 | 205 | 185 | 155 | – | – | – | 225 | 200 | 185 | 400 | 260 | 180 | – | – | – | |
| M | 2 | 185 | 160 | 140 | – | – | – | 205 | 180 | 145 | 270 | 170 | 120 | – | – | – |
| 3 | 145 | 130 | 115 | – | – | – | 155 | 135 | 105 | 265 | 175 | 120 | – | – | – | |
| 1 | 295 | 265 | 240 | 420 | 385 | 340 | – | – | – | 185 | 155 | 130 | 190 | 170 | 150 | |
| K | 2 | 235 | 210 | 190 | 335 | 295 | 275 | – | – | – | 150 | 120 | 105 | – | – | – |
| 3 | 195 | 175 | 160 | 280 | 250 | 230 | – | – | – | 120 | 105 | 85 | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 2000 | 1200 | 1000 | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 1365 | 815 | 665 |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 800 | 500 | 400 | |
| 1 | – | – | – | – | – | – | 45 | 40 | 30 | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – | 45 | 40 | 30 | – | – | – | – | – | – |
S
| 3 | – | – | – | – | – | – | 55 | 45 | 30 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 85 | 60 | 40 | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Programmed Feed per Tooth (fz)
Insert as a % of Radial Depth of Cut (ae) Insert
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||||||
| .F..ALP | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | .F..ALP |
| .E..ML | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..ML |
| .S..MM | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .S..MM |
| .S..MH | 0,23 | 0,54 | 0,85 | 0,17 | 0,39 | 0,61 | 0,13 | 0,29 | 0,46 | 0,11 | 0,25 | 0,40 | 0,10 | 0,23 | 0,36 | .S..MH |
NOTE: Use “Light Machining” value as starting feed rate.
