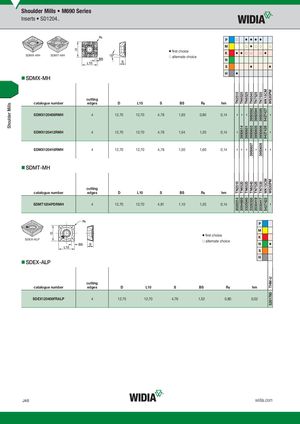

Общий каталог Widia 2017 - страница 854

Shoulder Mills • M690 Series
Inserts • SD1204..

P
M
 first choice
K
SDMX-MH SDMT-MH  alternate choice
N
S
H
„
SDMX-MH


WK15CM
WS30PM
TN2510
TN6520
TN6525
TN6540
TN7525
TN7535
cutting
catalogue number edges D L10 S BS R¡ hm
Shoulder Mills


3950592
3950594
3950595
5427427
SDMX120408RMH 4 12,70 12,70 4,76 1,93 0,80 0,14


–
–
–


–
3950614
3950601
3950603
3950605
3950606
5427428
SDMX120412RMH 4 12,70 12,70 4,76 1,54 1,20 0,14


–


–
3950607
3950609
SDMX120416RMH 4 12,70 12,70 4,76 1,50 1,60 0,14


–
–
–
–
–
–
„
SDMT-MH


WK15CM
WS30PM
TN2510
TN6520
TN6525
TN6540
TN7525
TN7535
cutting
catalogue number edges D L10 S BS R¡ hm


2028314
3094669
3325040
3326330
2030419
2030417
5427422
SDMT1204PDRMH 4 12,70 12,70 4,81 1,10 1,20 0,14


–
P
M
 first choice
K
SDEX-ALP  alternate choice
N
S
H
„
SDEX-ALP
THM-U

cutting
catalogue number edges D L10 S BS R¡ hm
5281790


SDEX120408FRALP 4 12,70 12,70 4,76 1,52 0,80 0,02


J46 widia.com
