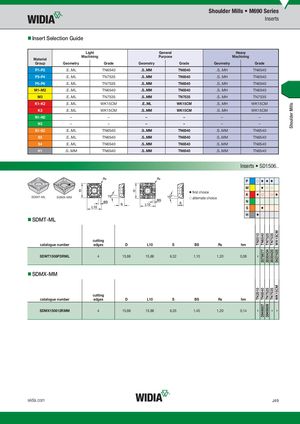

- Insert Selection Guide
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Material
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | |||
| P1–P2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 | |||
| P3–P4 | .E..ML | TN7535 | .S..MM | TN6540 | .S..MH | TN6540 | |||
| P5–P6 | .E..ML | TN7535 | .S..MM | TN6540 | .S..MH | TN6540 | |||
| M1–M2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 | |||
| M3 | .E..ML | TN7535 | .S..MM | TN7535 | .S..MH | TN7535 | |||
| K1–K2 | .E..ML | WK15CM | .E..ML | WK15CM | .S..MH | WK15CM | |||
| K3 | .E..ML | WK15CM | .S..MM | WK15CM | .S..MH | WK15CM | |||
| N1–N2 | – | – | – | – | – | – | |||
| N3 | – | – | – | – | – | – | |||
| S1–S2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 | |||
| S3 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 | |||
| S4 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 | |||
| H1 | .S..MM | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
Inserts • SD1506..
fi rst choice
SDMT-ML SDMX-MM alternate choice
- SDMT-ML
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| SDMT1506PDRML | 4 | 15,88 | 15,88 | 6,32 | 1,10 | 1,20 | 0,08 |
- SDMX-MM
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| SDMX150612RMM | 4 | 15,88 | 15,88 | 6,35 | 1,45 | 1,20 | 0,14 |
