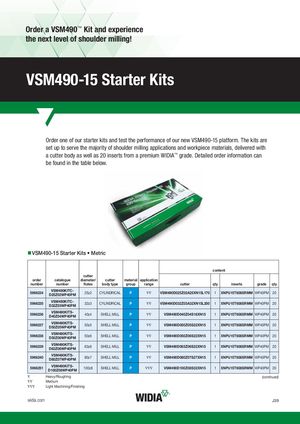

Order a VSM490™ Kit and experience
the next level of shoulder milling!
VSM490-15 Starter Kits
Order one of our starter kits and test the performance of our new VSM490-15 platform. The kits are
set up to serve the majority of shoulder milling applications and workpiece materials, delivered with
a cutter body as well as 20 inserts from a premium WIDIA™ grade. Detailed order information can
be found in the table below.
VSM490-15 Starter Kits • Metric
content cutter
order catalogue diameter/ cutter material application
| d | tl | cutter dit/ | tt | til | liti | con | tent | |||
| orer number | caaogue number | ameer fl utes | cuer body type | maera group | appcaon range | cutter | qty | inserts | grade | qty |
| 5966234 | VSM490KITC- D25Z02WP40PM | 25z2 | CYLINDRICAL | P | �� | VSM490D025Z02A25XN15L170 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966235 | VSM490KITC- D32Z03WP40PM | 32z3 | CYLINDRICAL | P | �� | VSM490D032Z03A32XN15L200 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966236 | VSM490KITS- D40Z04WP40PM | 40z4 | SHELL MILL | P | �� | VSM490D040Z04S16XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966237 | VSM490KITS- D50Z05WP40PM | 50z5 | SHELL MILL | P | �� | VSM490D050Z05S22XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966238 | VSM490KITS- D50Z06WP40PM | 50z6 | SHELL MILL | P | �� | VSM490D050Z06S22XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966239 | VSM490KITS- D63Z06WP40PM | 63z6 | SHELL MILL | P | �� | VSM490D063Z06S22XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966240 | VSM490KITS- D80Z07WP40PM | 80z7 | SHELL MILL | P | �� | VSM490D080Z07S27XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| 5966251 | VSM490KITS- D100Z08WP40PM | 100z8 | SHELL MILL | P | ��� | VSM490D100Z08S32XN15 | 1 | XNPU15T608SRMM | WP40PM | 20 |
| Heavy/Roughing | (conti | nued) |
