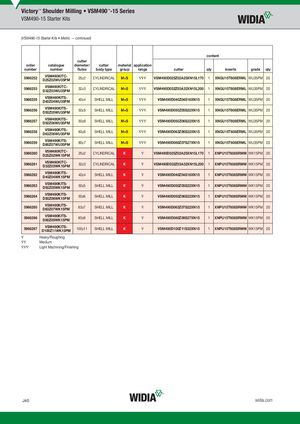

Victory™ Shoulder Milling • VSM490™-15 Series
VSM490-15 Starter Kits
(VSM490-15 Starter Kits • Metric — continued)
| cutter | con | tent | ||||||||
| order number | catalogue number | diameter/ flutes | cutter body type | material group | application range | cutter | qty | inserts | grade | qty |
| 5966252 | VSM490KITC- D25Z02WU35PM | 25z2 | CYLINDRICAL | M+S | ��� | VSM490D025Z02A25XN15L170 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966253 | VSM490KITC- D32Z03WU35PM | 32z3 | CYLINDRICAL | M+S | ��� | VSM490D032Z03A32XN15L200 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966255 | VSM490KITS- D40Z04WU35PM | 40z4 | SHELL MILL | M+S | ��� | VSM490D040Z04S16XN15 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966256 | VSM490KITS- D50Z05WU35PM | 50z5 | SHELL MILL | M+S | ��� | VSM490D050Z05S22XN15 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966257 | VSM490KITS- D50Z06WU35PM | 50z6 | SHELL MILL | M+S | ��� | VSM490D050Z06S22XN15 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966258 | VSM490KITS- D63Z06WU35PM | 63z6 | SHELL MILL | M+S | ��� | VSM490D063Z06S22XN15 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966259 | VSM490KITS- D80Z07WU35PM | 80z7 | SHELL MILL | M+S | ��� | VSM490D080Z07S27XN15 | 1 | XNGU15T608ERML | WU35PM | 20 |
| 5966260 | VSM490KITC- D25Z02WK15PM | 25z2 | CYLINDRICAL | K | � | VSM490D025Z02A25XN15L170 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966261 | VSM490KITC- D32Z03WK15PM | 32z3 | CYLINDRICAL | K | � | VSM490D032Z03A32XN15L200 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966262 | VSM490KITS- D40Z04WK15PM | 40z4 | SHELL MILL | K | � | VSM490D040Z04S16XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966263 | VSM490KITS- D50Z05WK15PM | 50z5 | SHELL MILL | K | � | VSM490D050Z05S22XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966264 | VSM490KITS- D50Z06WK15PM | 50z6 | SHELL MILL | K | � | VSM490D050Z06S22XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966265 | VSM490KITS- D63Z07WK15PM | 63z7 | SHELL MILL | K | � | VSM490D063Z07S22XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966266 | VSM490KITS- D80Z09WK15PM | 80z9 | SHELL MILL | K | � | VSM490D080Z09S27XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
| 5966267 | VSM490KITS- D100Z11WK15PM | 100z11 | SHELL MILL | K | � | VSM490D100Z11S32XN15 | 1 | XNPU15T608SRMM | WK15PM | 20 |
¢¢ Medium ¢¢¢ Light Machining/Finishing
