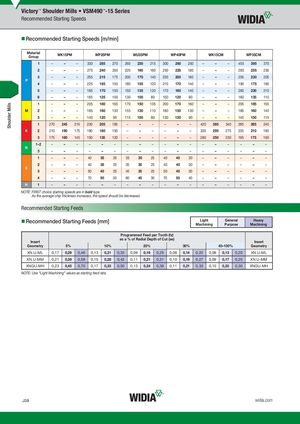

- Recommended Starting Speeds [m/min]
| Material Group | WK15PM | WP25PM | WU35P | M | WP40PM | WK15C | M | WP35C | M | |||||||||
| 1 | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | 300 | 260 | 250 | – | – | – | 455 | 395 | 370 |
| 2 | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | 250 | 220 | 180 | – | – | – | 280 | 255 | 230 |
| 3 | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | 230 | 200 | 160 | – | – | – | 255 | 230 | 205 |
| P 4 | – | – | – | 225 | 185 | 150 | 180 | 150 | 120 | 210 | 170 | 140 | – | – | – | 190 | 175 | 160 |
| 5 | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | 170 | 160 | 140 | – | – | – | 260 | 230 | 210 |
| 6 | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | 150 | 120 | 90 | – | – | – | 160 | 135 | 110 |
| 1 | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | 200 | 170 | 160 | – | – | – | 205 | 185 | 155 |
| M 2 | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | 180 | 150 | 130 | – | – | – | 185 | 160 | 140 |
| 3 | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | 130 | 120 | 90 | – | – | – | 145 | 130 | 115 |
| 1 | 270 | 245 | 215 | 230 | 205 | 185 | – | – | – | – | – | – | 420 | 385 | 340 | 295 | 265 | 240 |
| K 2 | 210 | 190 | 175 | 180 | 160 | 150 | – | – | – | – | – | – | 335 | 295 | 275 | 235 | 210 | 190 |
| 3 | 175 | 160 | 145 | 150 | 135 | 120 | – | – | – | – | – | – | 280 | 250 | 230 | 195 | 175 | 160 |
| 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | 40 | 40 | 30 | – | – | – | – | – | – |
| 2 | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | 40 | 40 | 30 | – | – | – | – | – | – |
| S 3 | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | 50 | 40 | 30 | – | – | – | – | – | – |
| 4 | – | – | – | 70 | 50 | 35 | 60 | 45 | 30 | 70 | 50 | 40 | – | – | – | – | – | – |
| H 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
| Recommended Starting Feeds [mm] | Light | General | Heavy | |
| Machining | Purpose | Machining |
| Recomm | ended | Starti | ng Fe | eds [ | mm] | Ligh Machi | t ning | Gen Purp | eral ose | Heavy Machining | ||||||
| Insert Geometry | 5% | 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Tooth th of Cu | (fz) t (ae) | 30% | 40–100% | Insert Geometry | ||||||
| XN.U-ML | 0,17 | 0,29 | 0,46 | 0,13 | 0,21 | 0,33 | 0,09 | 0,16 | 0,25 | 0,08 | 0,14 | 0,22 | 0,08 | 0,13 | 0,20 | XN.U-ML |
| XN.U-MM | 0,21 | 0,39 | 0,58 | 0,15 | 0,28 | 0,42 | 0,11 | 0,21 | 0,31 | 0,10 | 0,19 | 0,27 | 0,09 | 0,17 | 0,25 | XN.U-MM |
| XNGU-MH | 0,23 | 0,45 | 0,70 | 0,17 | 0,33 | 0,50 | 0,13 | 0,24 | 0,38 | 0,11 | 0,21 | 0,33 | 0,10 | 0,20 | 0,30 | XNGU-MH |
