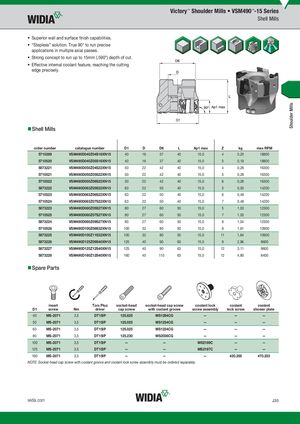

Общий каталог Widia 2017 - страница 843
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Superior wall and surface finish capabilities.
- “Stepless” solution. True 90° to run precise applications in multiple axial passes.
- Strong concept to run up to 15mm (.590") depth of cut.
- Effective internal coolant feature, reaching the cutting edge precisely.
- Shell Mills
| order number | catalogue number | D1 | D | D6 | L | Ap1 max | Z | kg | max RPM |
| 5710289 | VSM490D040Z04S16XN15 | 40 | 16 | 37 | 40 | 15,0 | 4 | 0,20 | 18800 |
| 5710520 | VSM490D040Z05S16XN15 | 40 | 16 | 37 | 40 | 15,0 | 5 | 0,19 | 18800 |
| 5873221 | VSM490D050Z04S22XN15 | 50 | 22 | 42 | 40 | 15,0 | 4 | 0,28 | 16300 |
| 5710521 | VSM490D050Z05S22XN15 | 50 | 22 | 42 | 40 | 15,0 | 5 | 0,28 | 16300 |
| 5710522 | VSM490D050Z06S22XN15 | 50 | 22 | 42 | 40 | 15,0 | 6 | 0,28 | 16300 |
| 5873222 | VSM490D063Z05S22XN15 | 63 | 22 | 50 | 40 | 15,0 | 5 | 0,50 | 14200 |
| 5710523 | VSM490D063Z06S22XN15 | 63 | 22 | 50 | 40 | 15,0 | 6 | 0,49 | 14200 |
| 5710524 | VSM490D063Z07S22XN15 | 63 | 22 | 50 | 40 | 15,0 | 7 | 0,48 | 14200 |
| 5873223 | VSM490D080Z05S27XN15 | 80 | 27 | 60 | 50 | 15,0 | 5 | 1,03 | 12300 |
| 5710525 | VSM490D080Z07S27XN15 | 80 | 27 | 60 | 50 | 15,0 | 7 | 1,03 | 12300 |
| 5873224 | VSM490D080Z09S27XN15 | 80 | 27 | 60 | 50 | 15,0 | 9 | 1,04 | 12300 |
| 5710526 | VSM490D100Z08S32XN15 | 100 | 32 | 80 | 50 | 15,0 | 8 | 1,61 | 10900 |
| 5873225 | VSM490D100Z11S32XN15 | 100 | 32 | 80 | 50 | 15,0 | 11 | 1,64 | 10900 |
| 5873226 | VSM490D125Z09S40XN15 | 125 | 40 | 90 | 63 | 15,0 | 9 | 2,96 | 9600 |
| 5873227 | VSM490D125Z12S40XN15 | 125 | 40 | 90 | 63 | 15,0 | 12 | 3,11 | 9600 |
| 5873228 | VSM490D160Z12S40XN15 | 160 | 40 | 110 | 63 | 15,0 | 12 | 4,80 | 8400 |
- Spare Parts
| insert | Torx Plus | socket-head | socket-head cap screw | coolant lock | coolant | coolant | ||||||||
| D1 | screw | Nm | driver | cap screw | with coolant groove | screw assembly | lock screw | shower plate | ||||||
| 40 | MS-2071 | 3,5 | DT15IP | 125.825 | MS1294CG | — | — | — | ||||||
| 50 | MS-2071 | 3,5 | DT15IP | 125.025 | MS1234CG | — | — | — | ||||||
| 63 | MS-2071 | 3,5 | DT15IP | 125.025 | MS1234CG | — | — | — | ||||||
| 80 | MS-2071 | 3,5 | DT15IP | 125.230 | MS2038CG | — | — | — | ||||||
| 100 | MS-2071 | 3,5 | DT15IP | — | — | MS2189C | — | — | ||||||
| 125 | MS-2071 | 3,5 | DT15IP | — | — | MS2187C | — | — | ||||||
| 160 | MS-2071 | 3,5 | DT15IP | — | — | — | 420.200 | 470.233 |
NOTE: Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately.
