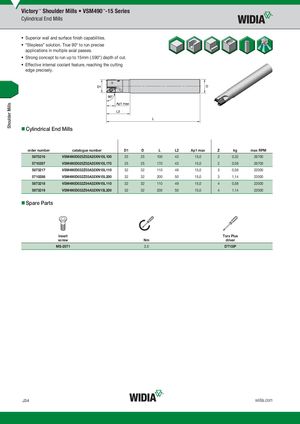

- Superior wall and surface finish capabilities.
- “Stepless” solution. True 90° to run precise applications in multiple axial passes.
- Strong concept to run up to 15mm (.590") depth of cut.
- Effective internal coolant feature, reaching the cutting edge precisely.
- Cylindrical End Mills
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | kg | max RPM |
| 5873216 | VSM490D025Z02A25XN15L100 | 25 | 25 | 100 | 43 | 15,0 | 2 | 0,32 | 26700 |
| 5710287 | VSM490D025Z02A25XN15L170 | 25 | 25 | 170 | 43 | 15,0 | 2 | 0,59 | 26700 |
| 5873217 | VSM490D032Z03A32XN15L110 | 32 | 32 | 110 | 49 | 15,0 | 3 | 0,59 | 22000 |
| 5710288 | VSM490D032Z03A32XN15L200 | 32 | 32 | 200 | 50 | 15,0 | 3 | 1,14 | 22000 |
| 5873218 | VSM490D032Z04A32XN15L110 | 32 | 32 | 110 | 49 | 15,0 | 4 | 0,58 | 22000 |
| 5873219 | VSM490D032Z04A32XN15L200 | 32 | 32 | 200 | 50 | 15,0 | 4 | 1,14 | 22000 |
- Spare Parts
insert Torx Plus
| screw | Nm | driver |
| MS-2071 | 3,5 | DT15IP |
