- Material Overview • DIN

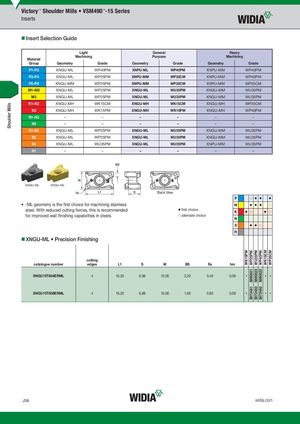

- Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Purp | eral ose | Hea Mach | vy ining |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | XNGU-ML | WP40PM | XNPU-ML | WP40PM | XNPU-MM | WP40PM |
| P3–P4 | XNGU-ML | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP40PM |
| P5–P6 | XNGU-MM | WP25PM | XNPU-MM | WP35CM | XNPU-MM | WP35CM |
| M1–M2 | XNGU-ML | WP25PM | XNGU-ML | WU35PM | XNGU-MM | WU35PM |
| M3 | XNGU-ML | WP25PM | XNGU-ML | WU35PM | XNGU-MM | WU35PM |
| K1–K2 | XNGU-MH | WK15CM | XNGU-MH | WK15CM | XNGU-MH | WP35CM |
| K3 | XNGU-MH | WK15PM | XNGU-MH | WK15PM | XNGU-MH | WP40PM |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | XNGU-ML | WP25PM | XNGU-ML | WU35PM | XNGU-MM | WU35PM |
| S3 | XNGU-ML | WP25PM | XNGU-ML | WU35PM | XNGU-MM | WU35PM |
| S4 | XNGU-ML | WU35PM | XNGU-ML | WU35PM | XNPU-MM | WU35PM |
| H1 | – | – | – | – | – | – |
XNGU-ML XNGU-ML Back View
- -ML geometry is the first choice for machining stainless steel. With reduced cutting forces, this is recommended first choice for improved wall finishing capabilities in steels. alternate choice
- XNGU-ML Precision Finishing
P M K N S H
cutting
| catalogue number | edges | L1 | S | W | BS | R¡ | hm |
| XNGU15T604ERML | 4 | 16,20 | 6,88 | 10,00 | 2,20 | 0,40 | 0,08 |
XNGU15T608ERML 4 16,20 6,88 10,00 1,80 0,80 0,08
LWID_Master16_IndexableMilling_ShoulderMills_J036_J037_Metric_REBRAND.indd 36ViWID M16 I dbl MilliShld Mill J036 J037 M i REBRANDN b 10 201512 33PM 11/10/15 2:19 PM
