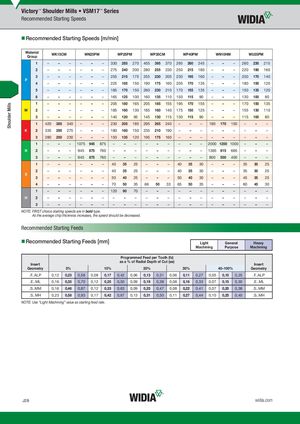

- Recommended Starting Speeds [m/min]
| Mat Gro | erial up | WK15C | M | W | N25P | M | W | P25PM | WP35C | M | WP40P | M | W | N10H | M | W | U35P | M | ||||
| 1 | – | – | – | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | 260 | 230 | 215 | |
| 2 | – | – | – | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | 220 | 190 | 160 | |
| P | 3 | – | – | – | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | 200 | 170 | 140 |
| 4 | – | – | – | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | 180 | 150 | 120 | |
| 5 | – | – | – | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | – | – | – | 150 | 135 | 120 | |
| 6 | – | – | – | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | – | – | – | 130 | 100 | 80 | |
| 1 | – | – | – | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | – | – | – | 170 | 150 | 135 | |
| M | 2 | – | – | – | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | – | – | – | 155 | 130 | 110 |
| 3 | – | – | – | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | – | – | – | 115 | 100 | 80 | |
| 1 | 420 | 385 | 340 | – | – | – | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | 190 | 170 | 150 | – | – | – | |
| K | 2 | 335 | 295 | 275 | – | – | – | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – |
| 3 | 280 | 250 | 230 | – | – | – | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | 2000 | 1200 | 1000 | – | – | – | |
| N | 2 | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | 1365 | 815 | 665 | – | – | – |
| 3 | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | 800 | 500 | 400 | – | – | – | |
| 1 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 30 | – | – | – | 35 | 30 | 25 | |
| 2 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 30 | – | – | – | 35 | 30 | 25 | |
| S | 3 | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | 50 | 40 | 30 | – | – | – | 45 | 35 | 25 |
| 4 | – | – | – | – | – | – | 70 | 50 | 35 | 66 | 50 | 33 | 65 | 50 | 35 | – | – | – | 60 | 45 | 30 | |
| 1 | – | – | – | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
| ecomm Insert Geometry | ene | ar 5% | ng e | es [ | m] 10% | Prog as a | ramme % of Ra | dFeedp dial Dep 20% | er Toot th of Cu | h (fz) t (ae) | 30% | Lig Machi | ht ning | Gen Purp 40–100% | eral ose | Heavy Machining Insert Geometry |
| .F..ALP | 0,12 | 0,23 | 0,58 | 0,08 | 0,17 | 0,42 | 0,06 | 0,13 | 0,31 | 0,06 | 0,11 | 0,27 | 0,05 | 0,10 | 0,25 | .F..ALP |
| .E..ML | 0,16 | 0,35 | 0,70 | 0,12 | 0,25 | 0,50 | 0,09 | 0,19 | 0,38 | 0,08 | 0,16 | 0,33 | 0,07 | 0,15 | 0,30 | .E..ML |
| .S..MM | 0,16 | 0,46 | 0,87 | 0,12 | 0,33 | 0,63 | 0,09 | 0,25 | 0,47 | 0,08 | 0,22 | 0,41 | 0,07 | 0,20 | 0,38 | .S..MM |
| .S..MH | 0,23 | 0,58 | 0,93 | 0,17 | 0,42 | 0,67 | 0,13 | 0,31 | 0,50 | 0,11 | 0,27 | 0,44 | 0,10 | 0,25 | 0,40 | .S..MH |
LWID_Master16_IndexableMilling_ShoulderMills_J028_J029_Metric_REBRAND.indd 28ViWID M16 I dbl MilliShld Mill J028 J029 M i REBRANDD b 17 20158 08AM 12/17/15 8:08 AM
