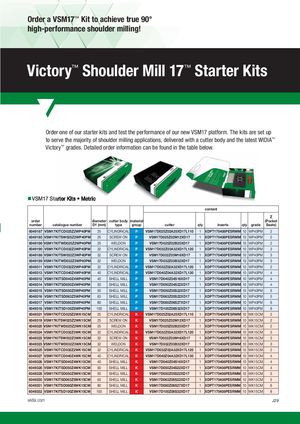

Order a VSM17™ Kit to achieve true 90°
high-performance shoulder milling!
Victory™ Shoulder Mill 17™ Starter Kits
Order one of our starter kits and test the performance of our new VSM17 platform. The kits are set up
to serve the majority of shoulder milling applications, delivered with a cutter body and the latest WIDIA™
Victory™ grades. Detailed order information can be found in the table below.
VSM17 Starter Kits • Metric
content
| order number | catalogue number | diameter D1 (mm) | cutter body type | material group | cutter | qty | content inserts | qty | grade | Z (Pocket Seats) |
| 6049187 | VSM17KITCD025Z2WP40PM | 25 | CYLINDRICAL | P | VSM17D025Z02A25XD17L110 | 1 | XDPT170408PESRMM | 10 | WP40PM | 2 |
| 6049185 | VSM17KITSW025Z2WP40PM | 25 | SCREW ON | P | VSM17D025Z02M12XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 2 |
| 6049186 | VSM17KITWD025Z2WP40PM | 25 | WELDON | P | VSM17D025Z02B25XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 2 |
| 6049190 | VSM17KITCD032Z3WP40PM | 32 | CYLINDRICAL | P | VSM17D032Z03A32XD17L120 | 1 | XDPT170408PESRMM | 10 | WP40PM | 3 |
| 6049188 | VSM17KITSW032Z3WP40PM | 32 | SCREW ON | P | VSM17D032Z03M16XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 3 |
| 6049189 | VSM17KITWD032Z3WP40PM | 32 | WELDON | P | VSM17D032Z03B32XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 3 |
| 6049311 | VSM17KITCD032Z2WP40PM | 32 | CYLINDRICAL | P | VSM17D032Z02A32XD17L120 | 1 | XDPT170408PESRMM | 10 | WP40PM | 2 |
| 6049313 | VSM17KITCD040Z4WP40PM | 40 | CYLINDRICAL | P | VSM17D040Z04A32XD17L130 | 1 | XDPT170408PESRMM | 10 | WP40PM | 4 |
| 6049312 | VSM17KITSD040Z4WP40PM | 40 | SHELL MILL | P | VSM17D040Z04S16XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 4 |
| 6049314 | VSM17KITSD050Z4WP40PM | 50 | SHELL MILL | P | VSM17D050Z04S22XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 4 |
| 6049315 | VSM17KITSD050Z5WP40PM | 50 | SHELL MILL | P | VSM17D050Z05S22XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 5 |
| 6049316 | VSM17KITSD063Z5WP40PM | 63 | SHELL MILL | P | VSM17D063Z05S22XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 5 |
| 6049317 | VSM17KITSD080Z6WP40PM | 80 | SHELL MILL | P | VSM17D080Z06S27XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 6 |
| 6049318 | VSM17KITSD100Z8WP40PM | 100 | SHELL MILL | P | VSM17D100Z08S32XD17 | 1 | XDPT170408PESRMM | 10 | WP40PM | 8 |
| 6049321 | VSM17KITCD025Z2WK15CM | 25 | CYLINDRICAL | K | VSM17D025Z02A25XD17L110 | 1 | XDPT170408PESRMM | 10 | WK15CM | 2 |
| 6049319 | VSM17KITSW025Z2WK15CM | 25 | SCREW ON | K | VSM17D025Z02M12XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 2 |
| 6049320 | VSM17KITWD025Z2WK15CM | 25 | WELDON | K | VSM17D025Z02B25XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 2 |
| 6049324 | VSM17KITCD032Z3WK15CM | 32 | CYLINDRICAL | K | VSM17D032Z03A32XD17L120 | 1 | XDPT170408PESRMM | 10 | WK15CM | 3 |
| 6049322 | VSM17KITSW032Z3WK15CM | 32 | SCREW ON | K | VSM17D032Z03M16XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 3 |
| 6049323 | VSM17KITWD032Z3WK15CM | 32 | WELDON | K | VSM17D032Z03B32XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 3 |
| 6049325 | VSM17KITCD032Z2WK15CM | 32 | CYLINDRICAL | K | VSM17D032Z02A32XD17L120 | 1 | XDPT170408PESRMM | 10 | WK15CM | 2 |
| 6049327 | VSM17KITCD040Z4WK15CM | 40 | CYLINDRICAL | K | VSM17D040Z04A32XD17L130 | 1 | XDPT170408PESRMM | 10 | WK15CM | 4 |
| 6049326 | VSM17KITSD040Z4WK15CM | 40 | SHELL MILL | K | VSM17D040Z04S16XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 4 |
| 6049328 | VSM17KITSD050Z4WK15CM | 50 | SHELL MILL | K | VSM17D050Z04S22XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 4 |
| 6049329 | VSM17KITSD050Z5WK15CM | 50 | SHELL MILL | K | VSM17D050Z05S22XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 5 |
| 6049330 | VSM17KITSD063Z5WK15CM | 63 | SHELL MILL | K | VSM17D063Z05S22XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 5 |
| 6049331 | VSM17KITSD080Z6WK15CM | 80 | SHELL MILL | K | VSM17D080Z06S27XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 6 |
| 6049332 | VSM17KITSD100Z8WK15CM | 100 | SHELL MILL | K | VSM17D100Z08S32XD17 | 1 | XDPT170408PESRMM | 10 | WK15CM | 8 |
