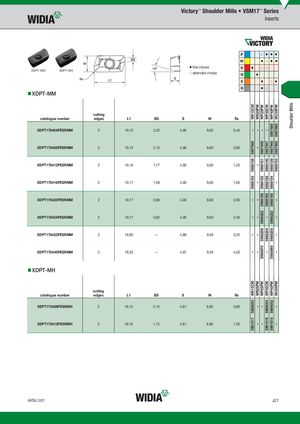

| XDPT-MM XDPT-MH �XDPT-MM catalogue number | cutting edges | L1 | BS | S | W �first choice �alternate choice | R � P M K N S H | WK15CM WN25PM WP25PM WP35CM WP40PM WU35PM � � � � � � � � � � � � � � � � � |
| XDPT170404PESRMM XDPT170408PESRMM | 2 2 | 19,15 19,15 | 2,52 2,15 | 4,90 4,90 | 9,60 9,60 | 0,40 0,80 | – – – – 5987689 5987690 5987948 – 5987949 5987947 5987946 5987950 |
| XDPT170412PESRMM XDPT170416PESRMM | 2 2 | 19,16 19,17 | 1,77 1,38 | 4,90 4,90 | 9,60 9,60 | 1,20 1,60 | 5988138 – 5988151 5988140 5988139 5988152 5988153 – 5988155 5988156 5988154 – |
| XDPT170420PESRMM XDPT170424PESRMM | 2 2 | 19,17 19,17 | 0,99 0,62 | 4,90 4,90 | 9,60 9,60 | 2,00 2,40 | – – 5988158 5988160 5988159 – – – 5988203 – 5988202 – |
| XDPT170432PESRMM | 2 | 18,85 | — | 4,89 | 9,59 | 3,20 | – – 5988206 5988204 5988205 – |
| XDPT170440PESRMM | 2 | 18,33 | — | 4,87 | 9,59 | 4,00 | – – 5988970 – 5988969 – |
| �XDPT-MH | |||||||
| catalogue number | cutting edges | L1 | BS | S | W | R � | WK15CM WN25PM WP25PM WP35CM WP40PM WU35PM |
| XDPT170408PESRMH | 2 | 19,15 | 2,10 | 4,91 | 9,60 | 0,80 | 5989053 – – 5989054 5989052 – |
| XDPT170412PESRMH | 2 | 19,16 | 1,73 | 4,91 | 9,60 | 1,20 | 5991817 – – 5991816 5991815 – |
