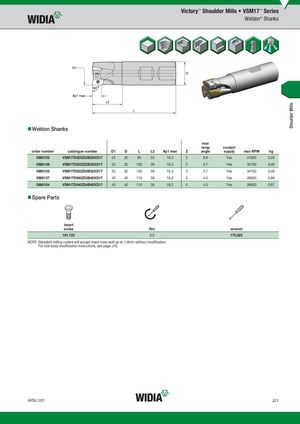

- Weldon Shanks
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | max ramp angle | coolant supply | max RPM | kg |
| 5988102 | VSM17D025Z02B25XD17 | 25 | 25 | 90 | 33 | 16,3 | 2 | 8.8 | Yes | 41800 | 0,26 |
| 5988136 | VSM17D032Z02B32XD17 | 32 | 32 | 100 | 39 | 16,3 | 2 | 5.7 | Yes | 34700 | 0,49 |
| 5988103 | VSM17D032Z03B32XD17 | 32 | 32 | 100 | 39 | 16,3 | 3 | 5.7 | Yes | 34700 | 0,48 |
| 5988137 | VSM17D040Z03B40XD17 | 40 | 40 | 110 | 39 | 16,2 | 3 | 4.0 | Yes | 29800 | 0,88 |
| 5988104 | VSM17D040Z04B40XD17 | 40 | 40 | 110 | 39 | 16,2 | 4 | 4.0 | Yes | 29800 | 0,87 |
- Spare Parts
insert
| screw | Nm | wrench |
| 191.725 | 3,5 | 170.025 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
