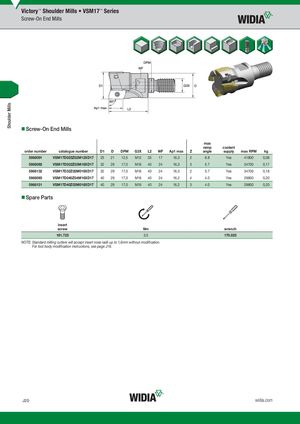

Общий каталог Widia 2017 - страница 828
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Screw-On End Mills
- Screw-On End Mills
| order number | catalogue number | D1 | D | DPM | G3X | L2 WF | Ap1 max | Z | max ramp angle | coolant supply | max RPM | kg |
| 5988091 | VSM17D025Z02M12XD17 | 25 | 21 | 12,5 | M12 | 35 17 | 16,3 | 2 | 8.8 | Yes | 41800 | 0,08 |
| 5988092 | VSM17D032Z03M16XD17 | 32 | 29 | 17,0 | M16 | 40 24 | 16,3 | 3 | 5.7 | Yes | 34700 | 0,17 |
| 5988132 | VSM17D32Z02M016XD17 | 32 | 29 | 17,0 | M16 | 40 24 | 16,3 | 2 | 5.7 | Yes | 34700 | 0,18 |
| 5988093 | VSM17D040Z04M16XD17 | 40 | 29 | 17,0 | M16 | 40 24 | 16,2 | 4 | 4.0 | Yes | 29800 | 0,20 |
| 5988131 | VSM17D40Z03M016XD17 | 40 | 29 | 17,0 | M16 | 40 24 | 16,2 | 3 | 4.0 | Yes | 29800 | 0,20 |
- Spare Parts
insert
| screw | Nm | wrench |
| 191.725 | 3,5 | 170.025 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
