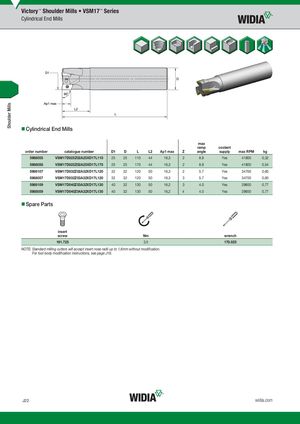

- Cylindrical End Mills
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | max ramp angle | coolant supply | max RPM | kg |
| 5988055 | VSM17D025Z02A25XD17L110 | 25 | 25 | 110 | 44 | 16,3 | 2 | 8.8 | Yes | 41800 | 0,32 |
| 5988056 | VSM17D025Z02A25XD17L170 | 25 | 25 | 170 | 44 | 16,3 | 2 | 8.8 | Yes | 41800 | 0,54 |
| 5988107 | VSM17D032Z02A32XD17L120 | 32 | 32 | 120 | 50 | 16,3 | 2 | 5.7 | Yes | 34700 | 0,60 |
| 5988057 | VSM17D032Z03A32XD17L120 | 32 | 32 | 120 | 50 | 16,3 | 3 | 5.7 | Yes | 34700 | 0,60 |
| 5988109 | VSM17D040Z03A32XD17L130 | 40 | 32 | 130 | 50 | 16,2 | 3 | 4.0 | Yes | 29800 | 0,77 |
| 5988059 | VSM17D040Z04A32XD17L130 | 40 | 32 | 130 | 50 | 16,2 | 4 | 4.0 | Yes | 29800 | 0,77 |
- Spare Parts
insert
| screw | Nm | wrench |
| 191.725 | 3,5 | 170.025 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
