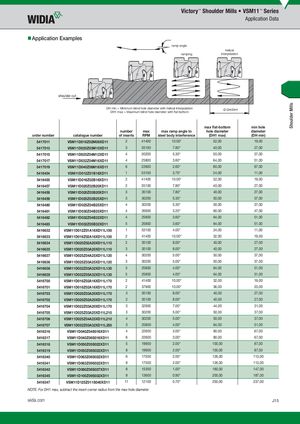

Application Examples
ramp angle helical ramping interpolation
shoulder cut
DH min = Minimum blind hole diameter with helical interpolation Ø DH/DH1 DH1 max = Maximum blind hole diameter with flat bottom
max flat-bottom min hole
| number | max | max ramp angle to | hole diameter | diameter | ||
| order number | catalogue number | of inserts | RPM | steel body interference | (DH1 max) | (DH min) |
| 5417011 | VSM11D016Z02M08XD11 | 2 | 41400 | 10.00° | 32,00 | 19,00 |
| 5417013 | VSM11D020Z03M10XD11 | 3 | 35100 | 7.80° | 40,00 | 27,00 |
| 5417015 | VSM11D025Z04M12XD11 | 4 | 30200 | 5.30° | 50,00 | 37,00 |
| 5417017 | VSM11D032Z04M16XD11 | 4 | 25800 | 3.60° | 64,00 | 51,00 |
| 5417019 | VSM11D040Z06M16XD11 | 6 | 22600 | 2.60° | 80,00 | 67,00 |
| 5416454 | VSM11D012Z01B16XD11 | 1 | 53100 | 3.70° | 24,00 | 11,00 |
| 5416455 | VSM11D016Z02B16XD11 | 2 | 41400 | 10.00° | 32,00 | 19,00 |
| 5416457 | VSM11D020Z02B20XD11 | 2 | 35100 | 7.80° | 40,00 | 27,00 |
| 5416458 | VSM11D020Z03B20XD11 | 3 | 35100 | 7.80° | 40,00 | 27,00 |
| 5416459 | VSM11D025Z03B25XD11 | 3 | 30200 | 5.30° | 50,00 | 37,00 |
| 5416480 | VSM11D025Z04B25XD11 | 4 | 30200 | 5.30° | 50,00 | 37,00 |
| 5416481 | VSM11D030Z04B25XD11 | 4 | 26900 | 3.20° | 60,00 | 47,00 |
| 5416482 | VSM11D032Z04B32XD11 | 4 | 25800 | 3.60° | 64,00 | 51,00 |
| 5416483 | VSM11D032Z05B32XD11 | 5 | 25800 | 3.60° | 64,00 | 51,00 |
| 5416632 | VSM11D012Z01A16XD11L100 | 1 | 53100 | 4.00° | 24,00 | 11,00 |
| 5416633 | VSM11D016Z02A16XD11L100 | 2 | 41400 | 10.00° | 32,00 | 19,00 |
| 5416634 | VSM11D020Z02A20XD11L110 | 2 | 35100 | 8.00° | 40,00 | 27,00 |
| 5416635 | VSM11D020Z03A20XD11L110 | 3 | 35100 | 8.00° | 40,00 | 27,00 |
| 5416637 | VSM11D025Z04A25XD11L120 | 4 | 30200 | 5.00° | 50,00 | 37,00 |
| 5416636 | VSM11D025Z03A25XD11L120 | 3 | 30200 | 5.00° | 50,00 | 37,00 |
| 5416638 | VSM11D032Z03A32XD11L130 | 3 | 25800 | 4.00° | 64,00 | 51,00 |
| 5416639 | VSM11D032Z05A32XD11L130 | 5 | 25800 | 4.00° | 64,00 | 51,00 |
| 5416700 | VSM11D016Z02A16XD11L170 | 2 | 41400 | 10.00° | 32,00 | 19,00 |
| 5416701 | VSM11D018Z02A16XD11L170 | 2 | 37900 | 10.00° | 36,00 | 23,00 |
| 5416703 | VSM11D020Z03A20XD11L170 | 3 | 35100 | 8.00° | 40,00 | 27,00 |
| 5416702 | VSM11D020Z02A20XD11L170 | 2 | 35100 | 8.00° | 40,00 | 27,00 |
| 5416704 | VSM11D022Z03A20XD11L170 | 3 | 32900 | 7.00° | 44,00 | 31,00 |
| 5416705 | VSM11D025Z03A25XD11L210 | 3 | 30200 | 5.00° | 50,00 | 37,00 |
| 5416706 | VSM11D025Z04A25XD11L210 | 4 | 30200 | 5.00° | 50,00 | 37,00 |
| 5416707 | VSM11D032Z03A32XD11L250 | 3 | 25800 | 4.00° | 64,00 | 51,00 |
| 5416316 | VSM11D040Z04S016XD11 | 4 | 22600 | 3.00° | 80,00 | 67,00 |
| 5416317 | VSM11D040Z06S016XD11 | 6 | 22600 | 3.00° | 80,00 | 67,00 |
| 5416318 | VSM11D050Z05S022XD11 | 5 | 19900 | 2.00° | 100,00 | 87,00 |
| 5416319 | VSM11D050Z08S022XD11 | 8 | 19900 | 2.00° | 100,00 | 87,00 |
| 5416340 | VSM11D063Z06S022XD11 | 6 | 17500 | 2.00° | 126,00 | 113,00 |
| 5416341 | VSM11D063Z09S022XD11 | 9 | 17500 | 2.00° | 126,00 | 113,00 |
| 5416342 | VSM11D080Z08S027XD11 | 8 | 15300 | 1.00° | 160,00 | 147,00 |
| 5416345 | VSM11D100Z09S032XD11 | 9 | 13600 | 0.90° | 200,00 | 187,00 |
| 5416347 | VSM11D125Z011S040XD11 | 11 | 12100 | 0.70° | 250,00 | 237,00 |
NOTE: For DH1 max, subtract the insert corner radius from the max hole diameter.
