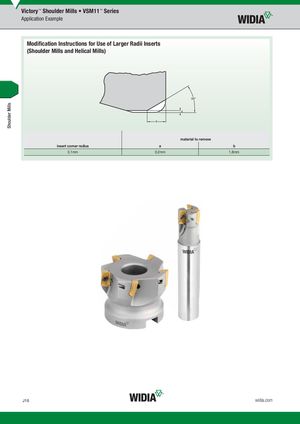

Victory™ Shoulder Mills • VSM11™ Series
Application Example
Modification Instructions for Use of Larger Radii Inserts
(Shoulder Mills and Helical Mills)
30º
Shoulder Mills
a
b
material to remove
insert corner radius a b
3,1mm 0,2mm 1,8mm
