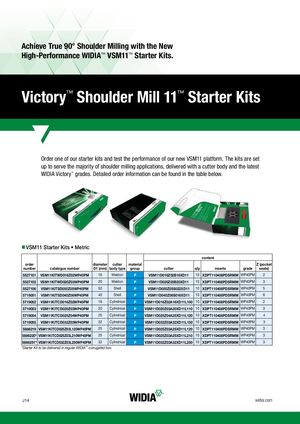

Achieve True 90° Shoulder Milling with the New
High-Performance WIDIA™ VSM11™ Starter Kits.
Victory™ Shoulder Mill 11™ Starter Kits
Order one of our starter kits and test the performance of our new VSM11 platform. The kits are set
up to serve the majority of shoulder milling applications, delivered with a cutter body and the latest
WIDIA Victory™ grades. Detailed order information can be found in the table below.
nnVSM11 Starter Kits • Metric
| content | |||||||||
| order number | catalogue number | diameter D1(mm) | cutter body type | material group | cutter q | ty | inserts | grade | Z (pocket seats) |
| 5527101 | VSM11KITWD016Z02WP40PM | 16 | Weldon | P | VSM11D016Z02B16XD11 1 | 0 | XDPT110408PDSRMM | WP40PM | 2 |
| 5527102 | VSM11KITWD020Z03WP40PM | 20 | Weldon | P | VSM11D020Z03B20XD11 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
| 5527106 | VSM11KITSD050Z05WP40PM | 50 | Shell | P | VSM11D050Z05S022XD11 1 | 0 | XDPT110408PDSRMM | WP40PM | 5 |
| 5719051 | VSM11KITSD040Z06WP40PM | 40 | Shell | P | VSM11D040Z06S016XD11 1 | 0 | XDPT110408PDSRMM | WP40PM | 6 |
| 5719052 | VSM11KITCD016Z02WP40PM | 16 | Cylindrical | P | VSM11D016Z02A16XD11L100 1 | 0 | XDPT110408PDSRMM | WP40PM | 2 |
| 5719053 | VSM11KITCD020Z03WP40PM | 20 | Cylindrical | P | VSM11D020Z03A20XD11L110 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
| 5719054 | VSM11KITCD025Z04WP40PM | 25 | Cylindrical | P | VSM11D025Z04A25XD11L120 1 | 0 | XDPT110408PDSRMM | WP40PM | 4 |
| 5719055 | VSM11KITCD032Z03WP40PM | 32 | Cylindrical | P | VSM11D032Z03A32XD11L130 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
| 5886219 | VSM11KITCD025Z03L120WP40PM | 25 | Cylindrical | P | VSM11D025Z03A25XD11L120 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
| 5886220 | VSM11KITCD025Z03L210WP40PM | 25 | Cylindrical | P | VSM11D025Z03A25XD11L210 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
| 5886251 | VSM11KITCD032Z03L250WP40PM | 32 | Cylindrical | P | VSM11D032Z03A32XD11L250 1 | 0 | XDPT110408PDSRMM | WP40PM | 3 |
*Starter Kit to be delivered in regular WIDIA™ corrugated box.
