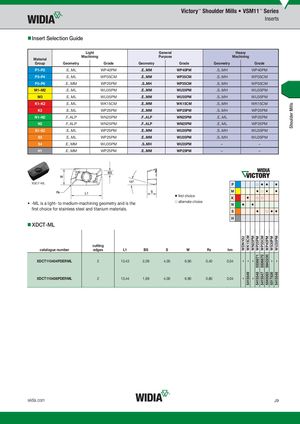

- Insert Selection Guide
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Material
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | .E..ML | WP40PM | .E..MM | WP40PM | .S..MH | WP40PM | |
| P3–P4 | .E..ML | WP35CM | .E..MM | WP35CM | .S..MH | WP35CM | |
| P5–P6 | .E..MM | WP25PM | .S..MH | WP35CM | .S..MH | WP35CM | |
| M1–M2 | .E..ML | WU35PM | .E..MM | WU35PM | .S..MH | WU35PM | |
| M3 | .E..ML | WU35PM | .E..MM | WU35PM | .S..MH | WU35PM | |
| K1–K2 | .E..ML | WK15CM | .E..MM | WK15CM | .S..MH | WK15CM | |
| K3 | .E..ML | WP25PM | .E..MM | WP25PM | .S..MH | WP25PM | |
| N1–N2 | .F..ALP | WN25PM | .F..ALP | WN25PM | .E..ML | WP25PM | |
| N3 | .F..ALP | WN25PM | .F..ALP | WN25PM | .E..ML | WP25PM | |
| S1–S2 | .E..ML | WP25PM | .E..MM | WU35PM | .S..MH | WU35PM | |
| S3 | .E..ML | WP25PM | .E..MM | WU35PM | .S..MH | WU35PM | |
| S4 | .E..MM | WU35PM | .S..MH | WU35PM | – | – | |
| H1 | .E..MM | WP25PM | .E..MM | WP25PM | – | – |
XDCT-ML
first choice
- -ML is a light- to medium-machining geometry and is the alternate choice first choice for stainless steel and titanium materials.
- XDCT-ML
P M K N S H
cutting
| catalogue number | edges | L1 | BS | S | W | R¡ | hm |
| XDCT110404PDERML | 2 | 13,43 | 2,09 | 4,00 | 6,90 | 0,40 | 0,04 |
XDCT110408PDERML 2 13,44 1,69 4,00 6,90 0,80 0,04
WID_Master16_IndexableMilling_ShoulderMills_J008_J009_Metric_REBRAND.indd 9 L V i WID M 16 I d bl Milli Sh ld Mill J008 J009 M i REBRANDN b 102015303PM11/11/15 9:32 AM
