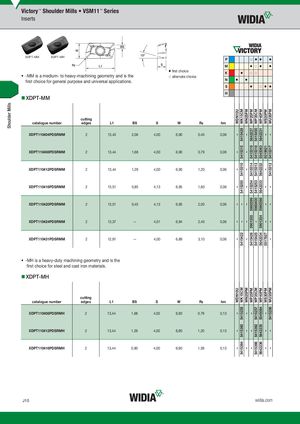

Общий каталог Widia 2017 - страница 818

Victory™ Shoulder Mills • VSM11™ Series
Inserts


XDPT-MM XDPT-MH
P
M
 first choice
K
• -MM is a medium- to heavy-machining geometry and is the  alternate choice
N
first choice for general purpose and universal applications.
S
H
„
XDPT-MM
Shoulder Mills


WK15CM
WN25PM
WP35CM

WU35PM
WP25PM
WP40PM
WDN10U


WS30PM
cutting
catalogue number edges L1 BS S W R¡ hm


5415428
5642237
5415450
5642231
XDPT110404PDSRMM 2 13,43 2,06 4,00 6,90 0,40 0,06


–
–


–
–
5415315
5415319
5415318
5545063
5519921
5415317
XDPT110408PDSRMM 2 13,44 1,68 4,00 6,90 0,79 0,06


–
–
5415310
5415314
5415313
5642232
5415312
XDPT110412PDSRMM 2 13,44 1,29 4,00 6,90 1,20 0,06


–
–


–
5415250
5415254
5415253
5642233
XDPT110416PDSRMM 2 13,51 0,85 4,13 6,95 1,60 0,06


–
–


–
–
5980399
5980400
5980398
XDPT110420PDSRMM 2 13,51 0,45 4,13 6,95 2,00 0,06


–
–
–


–
–
5901355
5901354
XDPT110424PDSRMM 2 13,37 — 4,01 6,94 2,40 0,06

–
–
–
–
–
–
5415422
5415426
5415425
5642234
5517827
XDPT110431PDSRMM 2 12,91 — 4,00 6,89 3,10 0,06
–
–


–
• -MH is a heavy-duty machining geometry and is the
first choice for steel and cast iron materials.
„
XDPT-MH
WK15CM
WN25PM
WP35CM

WU35PM
WP25PM
WP40PM
WDN10U


WS30PM


cutting
catalogue number edges L1 BS S W R¡ hm
5415255

5415257
5545064
5415256


XDPT110408PDSRMH 2 13,44 1,68 4,00 6,90 0,79 0,13
–
–
–

–
5415360

5415362
5642235


XDPT110412PDSRMH 2 13,44 1,29 4,00 6,90 1,20 0,13
–
–
–

–
–
5415364

5415366
5642236


XDPT110416PDSRMH 2 13,44 0,90 4,00 6,90 1,59 0,13
–
–
–

–
–


J10 widia.com
