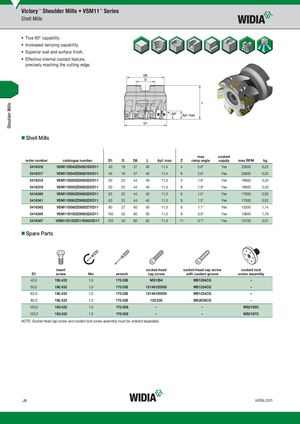

Общий каталог Widia 2017 - страница 816
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- True 90° capability.
- Increased ramping capability.
- Superior wall and surface finish.
- Effective internal coolant feature, precisely reaching the cutting edge.
- Shell Mills
max coolant
| order number | catalogue number D1 | D | D6 | L | Ap1 max | Z | ramp angle | supply | max RPM | kg | |
| 5416316 | VSM11D040Z04S016XD11 | 40 | 16 | 37 | 40 | 11,4 | 4 | 2.6° | Yes | 22600 | 0,22 |
| 5416317 | VSM11D040Z06S016XD11 | 40 | 16 | 37 | 40 | 11,4 | 6 | 2.6° | Yes | 22600 | 0,22 |
| 5416318 | VSM11D050Z05S022XD11 | 50 | 22 | 44 | 40 | 11,3 | 5 | 1.9° | Yes | 19900 | 0,33 |
| 5416319 | VSM11D050Z08S022XD11 | 50 | 22 | 44 | 40 | 11,3 | 8 | 1.9° | Yes | 19900 | 0,33 |
| 5416340 | VSM11D063Z06S022XD11 | 63 | 22 | 44 | 40 | 11,3 | 6 | 1.5° | Yes | 17500 | 0,50 |
| 5416341 | VSM11D063Z09S022XD11 | 63 | 22 | 44 | 40 | 11,3 | 9 | 1.5° | Yes | 17500 | 0,52 |
| 5416342 | VSM11D080Z08S027XD11 | 80 | 27 | 60 | 50 | 11,3 | 8 | 1.1° | Yes | 15300 | 1,14 |
| 5416345 | VSM11D100Z09S032XD11 | 100 | 32 | 80 | 50 | 11,3 | 9 | 0.9° | Yes | 13600 | 1,79 |
| 5416347 | VSM11D125Z011S040XD11 | 125 | 40 | 80 | 63 | 11,3 | 11 | 0.7° | Yes | 12100 | 3,01 |
- Spare Parts
| insert | socket-head | socket-head cap screw | coolant lock | ||||||||
| D1 | screw | Nm | wrench | cap screw | with coolant groove | screw assembly | |||||
| 40,0 | 192.432 | 1,0 | 170.028 | MS1294 | MS1294CG | – | |||||
| 50,0 | 192.432 | 1,0 | 170.028 | 12146120500 | MS1234CG | – | |||||
| 63,0 | 192.432 | 1,0 | 170.028 | 12146120500 | MS1234CG | – | |||||
| 80,0 | 192.432 | 1,0 | 170.028 | 125.230 | MS2038CG | – | |||||
| 100,0 | 192.432 | 1,0 | 170.028 | – | – | MS2195C | |||||
| 125,0 | 192.432 | 1,0 | 170.028 | – | – | MS2187C |
NOTE: Socket-head cap screw and coolant lock screw assembly must be ordered separately.
