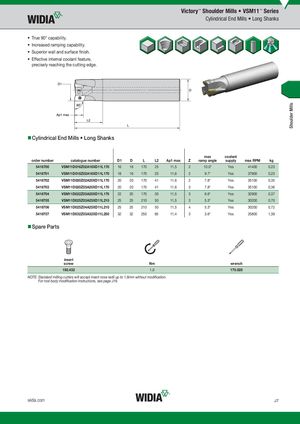

Cylindrical End Mills Long Shanks
- True 90° capability.
- Increased ramping capability.
- Superior wall and surface finish.
- Effective internal coolant feature, precisely reaching the cutting edge.
- Cylindrical End Mills Long Shanks
max coolant
| order number | catalogue number D1 | D | L | L2 | Ap1 max | Z | ramp angle | supply | max RPM | kg | |
| 5416700 | VSM11D016Z02A16XD11L170 | 16 | 16 | 170 | 25 | 11,5 | 2 | 10.0° | Yes | 41400 | 0,23 |
| 5416701 | VSM11D018Z02A16XD11L170 | 18 | 16 | 170 | 25 | 11,6 | 2 | 9.7° | Yes | 37900 | 0,23 |
| 5416702 | VSM11D020Z02A20XD11L170 | 20 | 20 | 170 | 41 | 11,6 | 2 | 7.8° | Yes | 35100 | 0,35 |
| 5416703 | VSM11D020Z03A20XD11L170 | 20 | 20 | 170 | 41 | 11,6 | 3 | 7.8° | Yes | 35100 | 0,36 |
| 5416704 | VSM11D022Z03A20XD11L170 | 22 | 20 | 170 | 30 | 11,5 | 3 | 6.6° | Yes | 32900 | 0,37 |
| 5416705 | VSM11D025Z03A25XD11L210 | 25 | 25 | 210 | 50 | 11,5 | 3 | 5.3° | Yes | 30200 | 0,70 |
| 5416706 | VSM11D025Z04A25XD11L210 | 25 | 25 | 210 | 50 | 11,5 | 4 | 5.3° | Yes | 30200 | 0,72 |
| 5416707 | VSM11D032Z03A32XD11L250 | 32 | 32 | 250 | 65 | 11,4 | 3 | 3.6° | Yes | 25800 | 1,39 |
- Spare Parts
insert
| screw | Nm | wrench |
| 192.432 | 1,0 | 170.028 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
