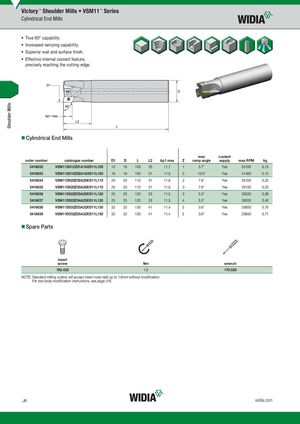

Общий каталог Widia 2017 - страница 814
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- True 90° capability.
- Increased ramping capability.
- Superior wall and surface finish.
- Effective internal coolant feature, precisely reaching the cutting edge.
- Cylindrical End Mills
max coolant
| order number | catalogue number D1 | D | L | L2 | Ap1 max | Z | ramp angle | supply | max RPM | kg | |
| 5416632 | VSM11D012Z01A16XD11L100 | 12 | 16 | 100 | 25 | 11,7 | 1 | 3.7° | Yes | 53100 | 0,13 |
| 5416633 | VSM11D016Z02A16XD11L100 | 16 | 16 | 100 | 31 | 11,5 | 2 | 10.0° | Yes | 41400 | 0,12 |
| 5416634 | VSM11D020Z02A20XD11L110 | 20 | 20 | 110 | 31 | 11,6 | 2 | 7.8° | Yes | 35100 | 0,22 |
| 5416635 | VSM11D020Z03A20XD11L110 | 20 | 20 | 110 | 31 | 11,6 | 3 | 7.8° | Yes | 35100 | 0,23 |
| 5416636 | VSM11D025Z03A25XD11L120 | 25 | 25 | 120 | 33 | 11,5 | 3 | 5.3° | Yes | 30200 | 0,39 |
| 5416637 | VSM11D025Z04A25XD11L120 | 25 | 25 | 120 | 33 | 11,5 | 4 | 5.3° | Yes | 30200 | 0,40 |
| 5416638 | VSM11D032Z03A32XD11L130 | 32 | 32 | 130 | 41 | 11,4 | 3 | 3.6° | Yes | 25800 | 0,70 |
| 5416639 | VSM11D032Z05A32XD11L130 | 32 | 32 | 130 | 41 | 11,4 | 5 | 3.6° | Yes | 25800 | 0,71 |
- Spare Parts
insert
| screw | Nm | wrench |
| 192.432 | 1,0 | 170.028 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
