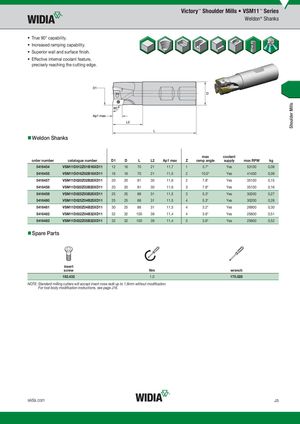

Общий каталог Widia 2017 - страница 813
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- True 90° capability.
- Increased ramping capability.
- Superior wall and surface finish.
- Effective internal coolant feature, precisely reaching the cutting edge.
- Weldon Shanks
max coolant
| order number | catalogue number D1 | D | L | L2 | Ap1 max | Z | ramp angle | supply | max RPM | kg | |
| 5416454 | VSM11D012Z01B16XD11 | 12 | 16 | 70 | 21 | 11,7 | 1 | 3.7° | Yes | 53100 | 0,08 |
| 5416455 | VSM11D016Z02B16XD11 | 16 | 16 | 70 | 21 | 11,5 | 2 | 10.0° | Yes | 41400 | 0,09 |
| 5416457 | VSM11D020Z02B20XD11 | 20 | 20 | 81 | 30 | 11,6 | 2 | 7.8° | Yes | 35100 | 0,15 |
| 5416458 | VSM11D020Z03B20XD11 | 20 | 20 | 81 | 30 | 11,6 | 3 | 7.8° | Yes | 35100 | 0,16 |
| 5416459 | VSM11D025Z03B25XD11 | 25 | 25 | 88 | 31 | 11,5 | 3 | 5.3° | Yes | 30200 | 0,27 |
| 5416480 | VSM11D025Z04B25XD11 | 25 | 25 | 88 | 31 | 11,5 | 4 | 5.3° | Yes | 30200 | 0,28 |
| 5416481 | VSM11D030Z04B25XD11 | 30 | 25 | 88 | 31 | 11,5 | 4 | 3.2° | Yes | 26900 | 0,30 |
| 5416482 | VSM11D032Z04B32XD11 | 32 | 32 | 100 | 39 | 11,4 | 4 | 3.6° | Yes | 25800 | 0,51 |
| 5416483 | VSM11D032Z05B32XD11 | 32 | 32 | 100 | 39 | 11,4 | 5 | 3.6° | Yes | 25800 | 0,52 |
- Spare Parts
insert
| screw | Nm | wrench |
| 192.432 | 1,0 | 170.028 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
