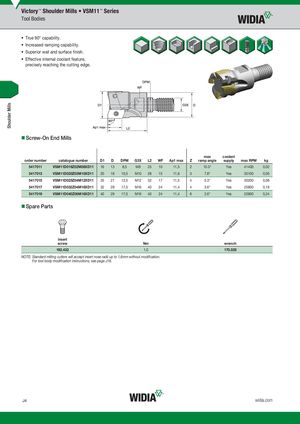

Tool Bodies
- True 90° capability.
- Increased ramping capability.
- Superior wall and surface finish.
- Effective internal coolant feature, precisely reaching the cutting edge.
- Screw-On End Mills
max coolant
| order number | catalogue number D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | ramp angle | supply | max RPM | kg | |
| 5417011 | VSM11D016Z02M08XD11 | 16 | 13 | 8,5 | M8 | 25 | 10 | 11,5 | 2 | 10.0° | Yes | 41400 | 0,02 |
| 5417013 | VSM11D020Z03M10XD11 | 20 | 18 | 10,5 | M10 | 28 | 15 | 11,6 | 3 | 7.8° | Yes | 35100 | 0,05 |
| 5417015 | VSM11D025Z04M12XD11 | 25 | 21 | 12,5 | M12 | 32 | 17 | 11,5 | 4 | 5.3° | Yes | 30200 | 0,08 |
| 5417017 | VSM11D032Z04M16XD11 | 32 | 29 | 17,0 | M16 | 40 | 24 | 11,4 | 4 | 3.6° | Yes | 25800 | 0,18 |
| 5417019 | VSM11D040Z06M16XD11 | 40 | 29 | 17,0 | M16 | 40 | 24 | 11,4 | 6 | 2.6° | Yes | 22600 | 0,24 |
- Spare Parts
insert
| screw | Nm | wrench |
| 192.432 | 1,0 | 170.028 |
NOTE: Standard milling cutters will accept insert nose radii up to 1,6mm without modification. For tool body modification instructions, see page J16.
