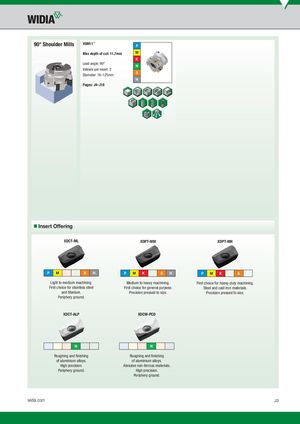

90° Shoulder Mills VSM11™ Max depth of cut: 11,7mm
Lead angle: 90° Indexes per insert: 2 Diameter: 16–125mm
Pages: J4–J16
P M K N S H
Insert Offering
XDCT-ML XDPT-MM XDPT-MH
| P | M | S | H | P | M | K | S | H | P | M | K | S | ||
| Light to medium machining. | Medium to heavy machining. | First choice for heavy-duty machining. | ||||||||||||
| First choice for stainless steel | First choice for general purpose. | Steel and cast iron materials. | ||||||||||||
| and titanium. | Precision pressed to size. | Precision pressed to size. |
Periphery ground.
XDCT-ALP XDCW-PCD
N N Roughing and fi nishing Roughing and fi nishing of aluminium alloys. of aluminium alloys. High precision. Abrasive non-ferrous materials. Periphery ground. High precision. Periphery ground.
