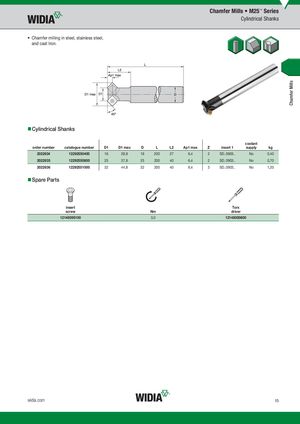

Cylindrical Shanks
- Chamfer milling in steel, stainless steel, and cast Iron.
- Cylindrical Shanks
coolant
| order number | catalogue number | D1 | D1 max | D | L | L2 | Ap1 max | Z | insert 1 | supply | kg | |||
| 2022634 | 12292550400 | 16 | 28,8 | 16 | 200 | 27 | 6,4 | 2 | SD..0903.. | No | 0,40 | |||
| 2022635 | 12292550800 | 25 | 37,8 | 25 | 200 | 40 | 6,4 | 2 | SD..0903.. | No | 0,70 | |||
| 2022636 | 12292551000 | 32 | 44,8 | 32 | 200 | 40 | 6,4 | 3 | SD..0903.. | No | 1,20 |
- Spare Parts
insert Torx
screw Nm driver
12148095100 3,0 12148000600
