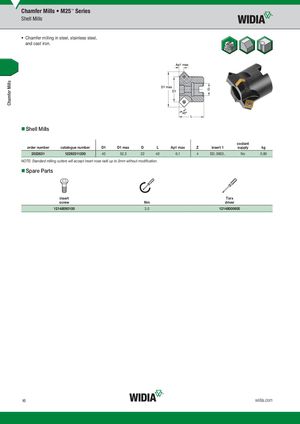

- Chamfer milling in steel, stainless steel, and cast iron.
- Shell Mills
coolant
| order number | catalogue number | D1 | D1 max | D | L | Ap1 max | Z | insert 1 | supply | kg | |||
| 2022631 | 12292511200 | 40 | 52,3 | 22 | 40 | 6,1 | 4 | SD..0903.. | No | 0,80 |
NOTE: Standard milling cutters will accept insert nose radii up to 2mm without modification.
- Spare Parts
insert Torx
screw Nm driver
12148095100 3,0 12148000600
