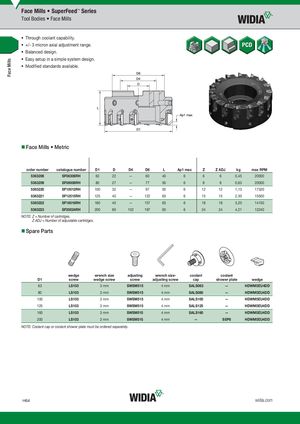

Tool Bodies Face Mills
- Through coolant capability.
- +/- 3 micron axial adjustment range.
- Balanced design.
- Easy setup in a simple system design.
- Modified standards available.
- Face Mills Metric
| order number | catalogue number | D1 | D | D4 | D6 | L | Ap1 max | Z | Z ADJ | kg | max RPM |
| 5363208 | SF06306RH | 63 | 22 | — | 60 | 40 | 6 | 6 | 6 | 0,45 | 20000 |
| 5363209 | SF08008RH | 80 | 27 | — | 77 | 50 | 6 | 8 | 8 | 0,63 | 20000 |
| 5363220 | SF10012RH | 100 | 32 | — | 97 | 50 | 6 | 12 | 12 | 1,13 | 17320 |
| 5363221 | SF12515RH | 125 | 40 | — | 122 | 63 | 6 | 15 | 15 | 2,30 | 15500 |
| 5363222 | SF16018RH | 160 | 40 | — | 157 | 63 | 6 | 18 | 18 | 3,20 | 14150 |
| 5363223 | SF20024RH | 200 | 60 | 102 | 197 | 63 | 6 | 24 | 24 | 4,21 | 12240 |
NOTE: Z = Number of cartridges. Z ADJ = Number of adjustable cartridges.
- Spare Parts
| wedge | wrench size | adjusting | wrench size- | coolant | coolant | |||||
| D1 | screw | wedge screw | screw | adjusting screw | cap | shower plate | wedge | |||
| 63 | LS103 | 3 mm | SWSM515 | 4 mm | SALS063 | — | HDWM5EU4DD | |||
| 80 | LS103 | 3 mm | SWSM515 | 4 mm | SALS080 | — | HDWM5EU4DD | |||
| 100 | LS103 | 3 mm | SWSM515 | 4 mm | SALS100 | — | HDWM5EU4DD | |||
| 125 | LS103 | 3 mm | SWSM515 | 4 mm | SALS125 | — | HDWM5EU4DD | |||
| 160 | LS103 | 3 mm | SWSM515 | 4 mm | SALS160 | — | HDWM5EU4DD | |||
| 200 | LS103 | 3 mm | SWSM515 | 4 mm | — | SSP8 | HDWM5EU4DD |
NOTE: Coolant cap or coolant shower plate must be ordered separately.
