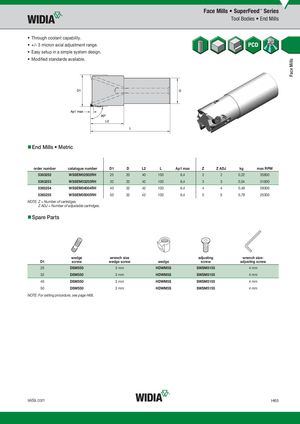

Tool Bodies End Mills
- Through coolant capability.
- +/- 3 micron axial adjustment range.
- Easy setup in a simple system design.
- Modified standards available.
- End Mills Metric
| order number | catalogue number | D1 | D | L2 | L | Ap1 max | Z | Z ADJ | kg | max RPM | ||
| 5363252 | WSSEM02502RH | 25 | 20 | 40 | 100 | 6,4 | 2 | 2 | 0,22 | 35800 | ||
| 5363253 | WSSEM03203RH | 32 | 32 | 42 | 100 | 6,4 | 3 | 3 | 0,54 | 31600 | ||
| 5363254 | WSSEM04004RH | 40 | 32 | 42 | 100 | 6,4 | 4 | 4 | 0,49 | 28300 | ||
| 5363255 | WSSEM05005RH | 50 | 32 | 42 | 100 | 6,4 | 5 | 5 | 0,79 | 25300 |
NOTE: Z = Number of cartridges. Z ADJ = Number of adjustable cartridges.
- Spare Parts
| wedge | wrench size | adjusting | wrench size- | ||||
| D1 | screw | wedge screw | wedge | screw | adjusting screw | ||
| 25 | DSM550 | 3 mm | HDWM5S | SWSM5155 | 4 mm | ||
| 32 | DSM550 | 3 mm | HDWM5S | SWSM5155 | 4 mm | ||
| 40 | DSM550 | 3 mm | HDWM5S | SWSM5155 | 4 mm | ||
| 50 | DSM550 | 3 mm | HDWM5S | SWSM5155 | 4 mm |
NOTE: For setting procedure, see page H68.
