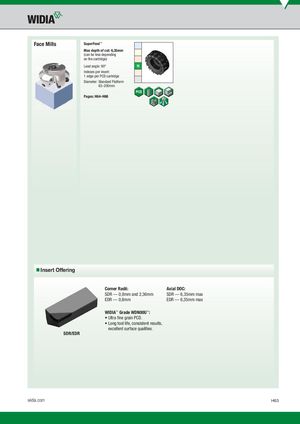

Face Mills SuperFeed™ Max depth of cut: 6,35mm (can be less depending on the cartridge) Lead angle: 90° N Indexes per insert: 1 edge per PCD cartridge Diameter: Standard Platform 63–200mm
Pages: H64–H68
Insert Offering
Corner Radii: Axial DOC: SDR — 0,8mm and 2,36mm SDR — 6,35mm max EDR — 0,8mm EDR — 6,35mm max
WIDIA ™ Grade WDN00U™:
- Ultra fi ne grain PCD.
- Long tool life, consistent results, excellent surface qualities.
SDR/EDR
