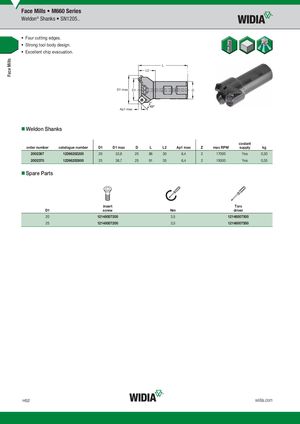

Weldon® Shanks SN1205..
- Four cutting edges.
- Strong tool body design.
- Excellent chip evacuation.
L L2
D1 max D1 D
Ap1 max
- Weldon Shanks
coolant
| order number | catalogue number | D1 | D1 max | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | ||
| 2002367 | 12396202200 | 20 | 33,8 | 25 | 86 | 30 | 6,4 | 2 | 17000 | Yes | 0,30 | ||
| 2002370 | 12396202600 | 25 | 38,7 | 25 | 91 | 35 | 6,4 | 2 | 15000 | Yes | 0,35 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 20 | 12148007200 | 3,5 | 12148007500 | ||
| 25 | 12148007200 | 3,5 | 12148007500 |
