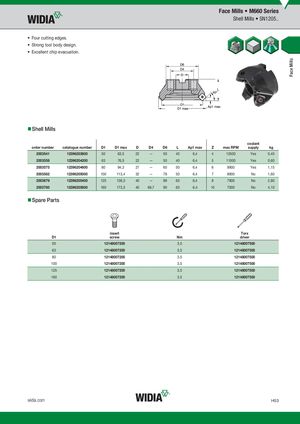

Shell Mills SN1205..
- Four cutting edges.
- Strong tool body design.
- Excellent chip evacuation.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D4 | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 2003541 | 12396203800 | 50 | 63,5 | 22 | — | 50 | 40 | 6,4 | 4 | 12500 | Yes | 0,45 |
| 2003558 | 12396204200 | 63 | 76,5 | 22 | — | 50 | 40 | 6,4 | 5 | 11000 | Yes | 0,60 |
| 2003575 | 12396204600 | 80 | 94,3 | 27 | — | 60 | 50 | 6,4 | 6 | 9900 | Yes | 1,15 |
| 2003582 | 12396205000 | 100 | 113,4 | 32 | — | 78 | 50 | 6,4 | 7 | 8900 | No | 1,60 |
| 2003679 | 12396205400 | 125 | 138,3 | 40 | — | 89 | 63 | 6,4 | 8 | 7900 | No | 2,80 |
| 2003780 | 12396205800 | 160 | 173,3 | 40 | 66,7 | 90 | 63 | 6,4 | 10 | 7000 | No | 4,10 |
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 50 | 12148007200 | 3,5 | 12148007500 |
| 63 | 12148007200 | 3,5 | 12148007500 |
| 80 | 12148007200 | 3,5 | 12148007500 |
| 100 | 12148007200 | 3,5 | 12148007500 |
| 125 | 12148007200 | 3,5 | 12148007500 |
| 160 | 12148007200 | 3,5 | 12148007500 |
