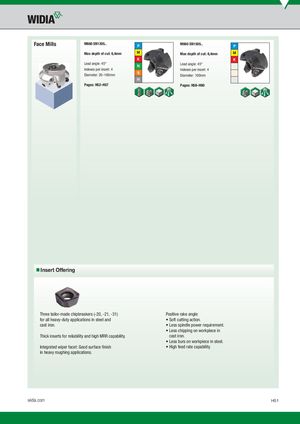

| Face Mills | M660 SN1205.. | M660 SN1505.. | ||
| P | P |
| Max depth of cut: 6,4mm | M | M | |
| Max depth of cut: 8,4mm | |||
| K | K | ||
| Lead angle: 45° | Lead angle: 45° | ||
| N | |||
| Indexes per insert: 4 | Indexes per insert: 4 | ||
| S | |||
| Diameter: 20–160mm | Diameter: 100mm | ||
| H | |||
| Pages: H52–H57 | Pages: H58–H60 |
Insert Offering
| Three tailor-made chipbreakers (-20, -21, -31) | Positive rake angle: |
| for all heavy-duty applications in steel and | • Soft cutting action. |
| cast iron. | • Less spindle power requirement. |
- Less chipping on workpiece in
Thick inserts for reliability and high MRR capability. cast iron.
- Less burs on workpiece in steel.
Integrated wiper facet: Good surface fi nish High feed rate capability.
in heavy roughing applications.
