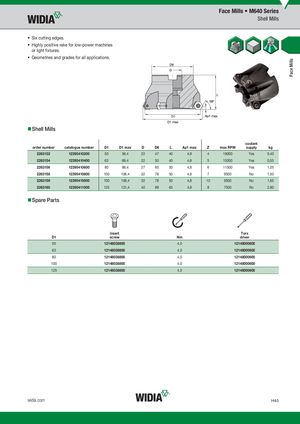

- Six cutting edges.
- Highly positive rake for low-power machines or light fixtures.
- Geometries and grades for all applications.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 2263132 | 12395410200 | 50 | 56,4 | 22 | 47 | 40 | 4,8 | 4 | 19000 | Yes | 0,40 |
| 2263154 | 12395410400 | 63 | 69,4 | 22 | 50 | 40 | 4,8 | 5 | 15000 | Yes | 0,55 |
| 2263156 | 12395410600 | 80 | 86,4 | 27 | 60 | 50 | 4,8 | 6 | 11500 | Yes | 1,05 |
| 2263158 | 12395410800 | 100 | 106,4 | 32 | 78 | 50 | 4,8 | 7 | 9500 | No | 1,50 |
| 2263159 | 12395415800 | 100 | 106,4 | 32 | 78 | 50 | 4,8 | 10 | 9500 | No | 1,65 |
| 2263160 | 12395411000 | 125 | 131,4 | 40 | 89 | 63 | 4,8 | 8 | 7500 | No | 2,90 |
- Spare Parts
insert Torx
D1 screw Nm driver
| D1 | insert screw | Nm | Torx driver |
| 50 | 12148038800 | 4,0 | 12148000600 |
| 63 | 12148038800 | 4,0 | 12148000600 |
| 80 | 12148038800 | 4,0 | 12148000600 |
| 100 | 12148038800 | 4,0 | 12148000600 |
| 125 | 12148038800 | 4,0 | 12148000600 |
