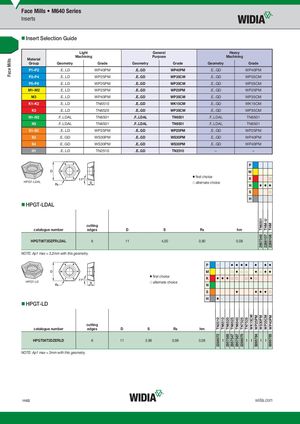

- Insert Selection Guide
| Light | General | Heavy | ||
| Machining | Purpose | Machining | ||
| Material |
| Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..LD | WP40PM | .E..GD | WP40PM | .E..GD | WP40PM |
| P3–P4 | .E..LD | WP25PM | .E..GD | WP35CM | .E..GD | WP35CM |
| P5–P6 | .E..LD | WP25PM | .E..GD | WP35CM | .E..GD | WP35CM |
| M1–M2 | .E..LD | WP25PM | .E..GD | WP25PM | .E..GD | WP25PM |
| M3 | .E..LD | WP40PM | .E..GD | WP35CM | .E..GD | WP35CM |
| K1–K2 | .E..LD | TN6510 | .E..GD | WK15CM | .E..GD | WK15CM |
| K3 | .E..LD | TN6520 | .E..GD | WP35CM | .E..GD | WP35CM |
| N1–N2 | .F..LDAL | TN6501 | .F..LDAL | TN6501 | .F..LDAL | TN6501 |
| N3 | .F..LDAL | TN6501 | .F..LDAL | TN6501 | .F..LDAL | TN6501 |
| S1–S2 | .E..LD | WP25PM | .E..GD | WP25PM | .E..GD | WP25PM |
| S3 | .E..GD | WS30PM | .E..GD | WS30PM | .E..GD | WP40PM |
| S4 | .E..GD | WS30PM | .E..GD | WS30PM | .E..GD | WP40PM |
| H1 | .E..LD | TN2510 | .E..GD | TN2510 | – – |
4 3 P 2 6 M 1 first choice K HPGT-LDAL alternate choice N S H
- HPGT-LDAL
cutting
| catalogue number | edges | D | S | R¡ | hm |
| HPGT06T3DZFRLDAL | 6 | 11 | 4,00 | 0,90 | 0,08 |
NOTE: Ap1 max = 3,2mm with this geometry.
4 3 P 2 6 M 1 first choice K HPGT-LD alternate choice N S H
- HPGT-LD
cutting
| catalogue number | edges | D | S | R¡ | hm |
| HPGT06T3DZERLD | 6 | 11 | 3,99 | 0,98 | 0,08 |
NOTE: Ap1 max = 3mm with this geometry.
