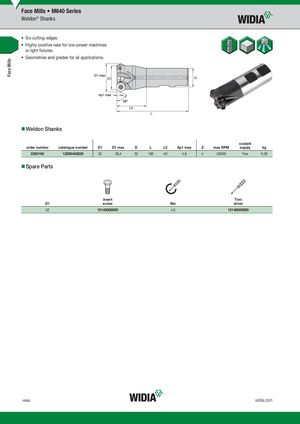

- Six cutting edges.
- Highly positive rake for low-power machines or light fixtures.
- Geometries and grades for all applications.
- Weldon Shanks
coolant
| order number | catalogue number | D1 | D1 max | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |||
| 2263165 | 12395405200 | 32 | 38,4 | 32 | 100 | 40 | 4,8 | 4 | 29500 | Yes | 0,35 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 32 | 12148038800 | 4,0 | 12148000600 |
