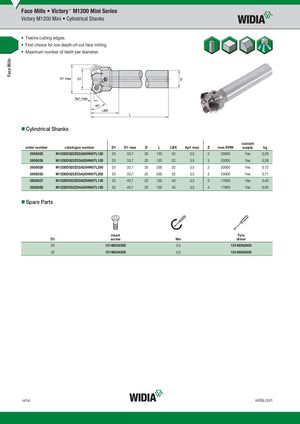

Victory M1200 Mini Cylindrical Shanks
- Twelve cutting edges.
- First choice for low depth-of-cut face milling.
- Maximum number of teeth per diameter.
- Cylindrical Shanks
coolant
| order number | catalogue number D1 | D1 max | D | L | LBX | Ap1 max | Z | max RPM | supply | kg | |
| 3958025 | M1200D025Z02A20HN07L120 | 25 | 33,7 | 20 | 120 | 32 | 3,5 | 2 | 20000 | Yes | 0,29 |
| 3958026 | M1200D025Z03A20HN07L120 | 25 | 33,7 | 20 | 120 | 32 | 3,5 | 3 | 20000 | Yes | 0,28 |
| 3958029 | M1200D025Z02A25HN07L200 | 25 | 33,7 | 25 | 200 | 32 | 3,5 | 2 | 20000 | Yes | 0,72 |
| 3958030 | M1200D025Z03A25HN07L200 | 25 | 33,7 | 25 | 200 | 32 | 3,5 | 3 | 20000 | Yes | 0,71 |
| 3958027 | M1200D032Z03A25HN07L130 | 32 | 40,7 | 25 | 130 | 40 | 3,5 | 3 | 17600 | Yes | 0,49 |
| 3958028 | M1200D032Z04A25HN07L130 | 32 | 40,7 | 25 | 130 | 40 | 3,5 | 4 | 17600 | Yes | 0,50 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 25 | 12146034500 | 3,5 | 12148082400 | ||
| 32 | 12146034500 | 3,5 | 12148082400 |
