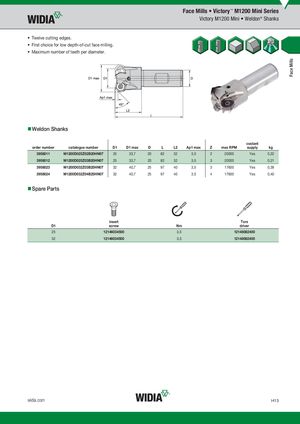

Общий каталог Widia 2017 - страница 733
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Victory M1200 Mini Weldon® Shanks
- Twelve cutting edges.
- First choice for low depth-of-cut face milling.
- Maximum number of teeth per diameter.
L
- Weldon Shanks
coolant
| order number | catalogue number | D1 | D1 max | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |||
| 3958011 | M1200D025Z02B20HN07 | 25 | 33,7 | 20 | 82 | 32 | 3,5 | 2 | 20000 | Yes | 0,22 | |||
| 3958012 | M1200D025Z03B20HN07 | 25 | 33,7 | 20 | 82 | 32 | 3,5 | 3 | 20000 | Yes | 0,21 | |||
| 3958023 | M1200D032Z03B25HN07 | 32 | 40,7 | 25 | 97 | 40 | 3,5 | 3 | 17600 | Yes | 0,39 | |||
| 3958024 | M1200D032Z04B25HN07 | 32 | 40,7 | 25 | 97 | 40 | 3,5 | 4 | 17600 | Yes | 0,40 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 25 | 12146034500 | 3,5 | 12148082400 | ||
| 32 | 12146034500 | 3,5 | 12148082400 |
