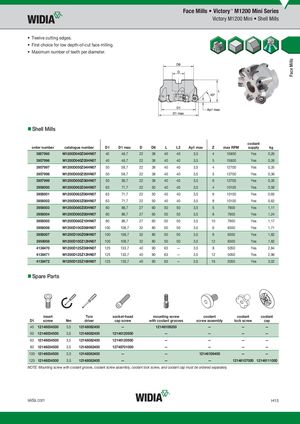

Victory M1200 Mini Shell Mills
- Twelve cutting edges.
- First choice for low depth-of-cut face milling.
- Maximum number of teeth per diameter.
- Shell Mills
coolant
| order number | catalogue number | D1 | D1 max | D | D6 | L | L2 | Ap1 max | Z | max RPM | supply | kg |
| 3957995 | M1200D040Z04HN07 | 40 | 48,7 | 22 | 38 | 40 | 40 | 3,5 | 4 | 15800 | Yes | 0,26 |
| 3957996 | M1200D040Z05HN07 | 40 | 48,7 | 22 | 38 | 40 | 40 | 3,5 | 5 | 15800 | Yes | 0,26 |
| 3957997 | M1200D050Z04HN07 | 50 | 58,7 | 22 | 38 | 40 | 40 | 3,5 | 4 | 12700 | Yes | 0,35 |
| 3957998 | M1200D050Z05HN07 | 50 | 58,7 | 22 | 38 | 40 | 40 | 3,5 | 5 | 12700 | Yes | 0,36 |
| 3957999 | M1200D050Z06HN07 | 50 | 58,7 | 22 | 38 | 40 | 40 | 3,5 | 6 | 12700 | Yes | 0,35 |
| 3958000 | M1200D063Z04HN07 | 63 | 71,7 | 22 | 50 | 40 | 40 | 3,5 | 4 | 10100 | Yes | 0,58 |
| 3958001 | M1200D063Z06HN07 | 63 | 71,7 | 22 | 50 | 40 | 40 | 3,5 | 6 | 10100 | Yes | 0,65 |
| 3958002 | M1200D063Z08HN07 | 63 | 71,7 | 22 | 50 | 40 | 40 | 3,5 | 8 | 10100 | Yes | 0,62 |
| 3958003 | M1200D080Z05HN07 | 80 | 88,7 | 27 | 60 | 50 | 50 | 3,5 | 5 | 7900 | Yes | 1,11 |
| 3958004 | M1200D080Z08HN07 | 80 | 88,7 | 27 | 60 | 50 | 50 | 3,5 | 8 | 7900 | Yes | 1,24 |
| 3958005 | M1200D080Z10HN07 | 80 | 88,7 | 27 | 60 | 50 | 50 | 3,5 | 10 | 7900 | Yes | 1,17 |
| 3958006 | M1200D100Z06HN07 | 100 | 108,7 | 32 | 80 | 50 | 50 | 3,5 | 6 | 6300 | Yes | 1,71 |
| 3958007 | M1200D100Z09HN07 | 100 | 108,7 | 32 | 80 | 50 | 50 | 3,5 | 9 | 6300 | Yes | 1,82 |
| 3958008 | M1200D100Z12HN07 | 100 | 108,7 | 32 | 80 | 50 | 50 | 3,5 | 12 | 6300 | Yes | 1,82 |
| 4138470 | M1200D125Z08HN07 | 125 | 133,7 | 40 | 90 | 63 | — | 3,5 | 8 | 5050 | Yes | 2,84 |
| 4138471 | M1200D125Z12HN07 | 125 | 133,7 | 40 | 90 | 63 | — | 3,5 | 12 | 5050 | Yes | 2,96 |
| 4138472 | M1200D125Z16HN07 | 125 | 133,7 | 40 | 90 | 63 | — | 3,5 | 16 | 5050 | Yes | 3,02 |
- Spare Parts
| insert | Torx | socket-head | mounting screw | coolant | coolant | coolant | |||
| D1 | screw | Nm | driver | cap screw | with coolant grooves | screw assembly | lock screw | cap |
| 40 | 12146034500 | 3,5 | 12148082400 | — | 12146109200 | — | — | — | |
| 50 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — | — | |
| 63 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — | — | |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 | — | — | — | — | |
| 100 | 12146034500 | 3,5 | 12148082400 | — | — | 12146109400 | — | — | |
| 125 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 12146111000 |
NOTE: Mounting screw with coolant groove, coolant screw assembly, coolant lock screw, and coolant cap must be ordered separately.
