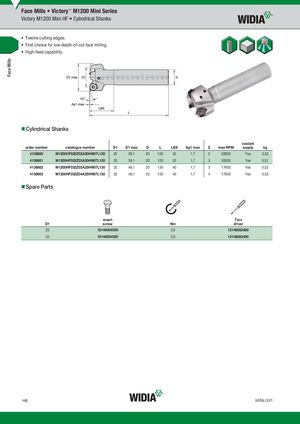

Victory M1200 Mini HF Cylindrical Shanks
- Twelve cutting edges.
- First choice for low depth-of-cut face milling.
- High-feed capability.
- Cylindrical Shanks
coolant
| order number | catalogue number | D1 | D1 max | D | L | LBX | Ap1 max | Z | max RPM | supply | kg | |||
| 4136880 | M1200HF025Z02A20HN07L120 | 25 | 39,1 | 20 | 120 | 32 | 1,7 | 2 | 20000 | Yes | 0,33 | |||
| 4136881 | M1200HF025Z03A20HN07L120 | 25 | 39,1 | 20 | 120 | 32 | 1,7 | 3 | 20000 | Yes | 0,31 | |||
| 4136882 | M1200HF032Z03A25HN07L130 | 32 | 46,1 | 25 | 130 | 40 | 1,7 | 3 | 17600 | Yes | 0,52 | |||
| 4136883 | M1200HF032Z04A25HN07L130 | 32 | 46,1 | 25 | 130 | 40 | 1,7 | 4 | 17600 | Yes | 0,53 |
- Spare Parts
insert Torx
| D1 | screw | Nm | driver | ||
| 25 | 12146034500 | 3,5 | 12148082400 | ||
| 32 | 12146034500 | 3,5 | 12148082400 |
