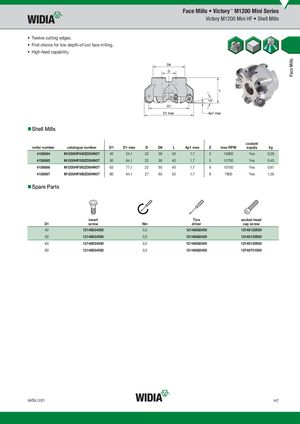

Victory M1200 Mini HF Shell Mills
- Twelve cutting edges.
- First choice for low depth-of-cut face milling.
- High-feed capability.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D6 | L | Ap1 max | Z max RPM | coolant supply | kg |
| 4136884 | M1200HF040Z05HN07 | 40 | 54,1 | 22 | 38 | 40 | 1,7 | 5 15800 | Yes | 0,29 |
| 4136885 | M1200HF050Z05HN07 | 50 | 64,1 | 22 | 38 | 40 | 1,7 | 5 12700 | Yes | 0,40 |
| 4136886 | M1200HF063Z06HN07 | 63 | 77,1 | 22 | 50 | 40 | 1,7 | 6 10100 | Yes | 0,67 |
| 4136887 | M1200HF080Z08HN07 | 80 | 94,1 | 27 | 60 | 50 | 1,7 | 8 7900 | Yes | 1,26 |
- Spare Parts
| insert | Torx | socket-head | ||
| D1 | screw | Nm | driver | cap screw |
| D1 | insert screw | Nm | Torx driver | socket-head cap screw |
| 40 | 12146034500 | 3,5 | 12148082400 | 12146120500 |
| 50 | 12146034500 | 3,5 | 12148082400 | 12146120500 |
| 63 | 12146034500 | 3,5 | 12148082400 | 12146120500 |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 |
