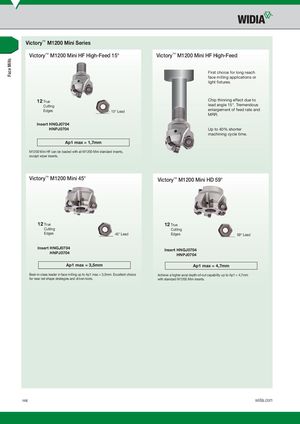

Victory™ M1200 Mini Series
Victory™ M1200 Mini HF High-Feed 15° Victory™ M1200 Mini HF High-Feed
First choice for long reach face milling applications or light fi xtures.
| 12 | Chip thinning effect due to | |
| True | ||
| Cutting | lead angle 15°. Tremendous | |
| Edges | enlargement of feed rate and | |
| 15° Lead | ||
| MRR. | ||
| Insert HNGJ0704 | ||
| HNPJ0704 Up to 40% shorter |
machining cycle time. Ap1 max = 1,7mm M1200 Mini HF can be loaded with all M1200 Mini standard inserts, except wiper inserts.
Victory™ M1200 Mini 45° Victory™ M1200 Mini HD 59°
12 True 12 True
Cutting Cutting
Edges 45° Lead Edges 59° Lead
Insert HNGJ0704 Insert HNGJ0704 HNPJ0704 HNPJ0704 Ap1 max = 3,5mm Ap1 max = 4,7mm Best-in-class leader in face milling up to Ap1 max = 3,5mm. Excellent choice Achieve a higher axial depth-of-cut capability up to Ap1 = 4,7mm for near net shape strategies and driven tools. with standard M1200 Mini inserts.
