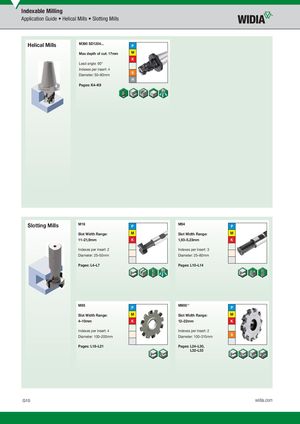

Application Guide • Helical Mills • Slotting Mills
Helical Mills M390 SD1204... Max depth of cut: 17mm
Lead angle: 90° Indexes per insert: 4 Diameter: 50–80mm
Pages: K4–K9
P M K
S H
| Slotting Mills | M16 | M94 | ||
| P | P | |||
| Slot Width Range: | M | Slot Width Range: | M | |
| 11–21,9mm | K | 1,93–5,23mm | K |
Indexes per insert: 2 Indexes per insert: 3 Diameter: 25–50mm Diameter: 25–80mm Pages: L4–L7 Pages: L10–L14
M95 M900™ P P
| Slot Width Range: | M | Slot Width Range: | M |
| 4–10mm | K | 12–22mm | K |
Indexes per insert: 4 Indexes per insert: 2 S Diameter: 100–200mm Diameter: 100–315mm Pages: L18–L21 Pages: L24–L30,
L32–L33
