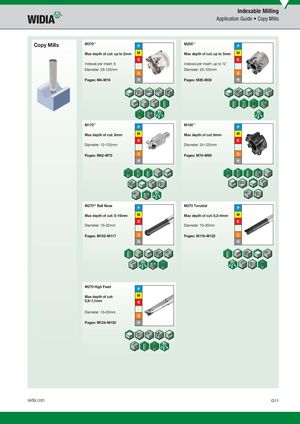

Application Guide • Copy Mills
| Copy Mills M370 ™ | M200™ | ||
| P | P | ||
| Max depth of cut: up to 2mm | M | Max depth of cut: up to 5mm | M |
| K | K | ||
| Indexes per insert: 6 | Indexes per insert: up to 12 | ||
| Diameter: 25–125mm | Diameter: 25–125mm | ||
| S | S | ||
| Pages: M4–M16 | H | Pages: M20–M39 | H |
M170 ™ M100™ P P
| Max depth of cut: 8mm | M | Max depth of cut: 6mm | M |
| K | K | ||
| Diameter: 12–125mm | Diameter: 24–125mm | ||
| Pages: M42–M70 | S | Pages: M74–M99 | S |
H H
M270 ™ Ball Nose M270 Toroidal P P
| Max depth of cut: 5–16mm | M | Max depth of cut: 0,3–4mm | M |
| K | K | ||
| Diameter: 10–32mm | Diameter: 10–20mm | ||
| Pages: M102–M117 | S | Pages: M118–M123 | S |
H H
M270 High Feed P
Max depth of cut: M 0,6–1,1mm K
Diameter: 10–20mm S Pages: M124–M130 H
