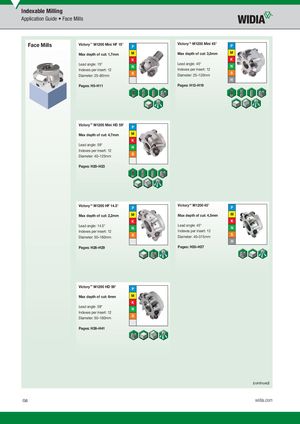

Общий каталог Widia 2017 - страница 706

Application Guide • Face Mills

Face Mills Victory™ M1200 Mini HF 15° Victory™ M1200 Mini 45°

P P

M Max depth of cut: 3,5mm M

Max depth of cut: 1,7mm K K Lead angle: 15° Lead angle: 45° N N Indexes per insert: 12 Indexes per insert: 12 S S Diameter: 25–80mm Diameter: 25–120mm H Pages: H5–H11 Pages: H12–H19

Victory™ M1200 Mini HD 59° Max depth of cut: 4,7mm

Lead angle: 59° Indexes per insert: 12 Diameter: 40–125mm

Pages: H20–H23

P M K N S

Victory™ M1200 HF 14.5° Victory™ M1200 45° P P

Max depth of cut: 2,2mm M Max depth of cut: 4,5mm M

K K Lead angle: 14.5° Lead angle: 45° N N Indexes per insert: 12 Indexes per insert: 12 S S Diameter: 50–160mm Diameter: 40–315mm H Pages: H26–H29 Pages: H30–H37

Victory™ M1200 HD 59° Max depth of cut: 6mm

Lead angle: 59° Indexes per insert: 12 Diameter: 50–160mm

Pages: H38–H41

P M K N S

(continued)
