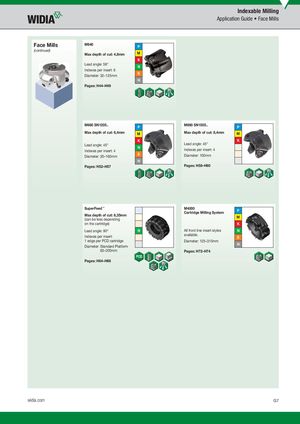

Application Guide • Face Mills
Face Mills M640 (continued) Max depth of cut: 4,8mm
Lead angle: 58° Indexes per insert: 6 Diameter: 32–125mm
Pages: H44–H49
P M K N S H
M660 SN1205.. M660 SN1505.. P P
| Max depth of cut: 6,4mm | Max depth of cut: 8,4mm | M | |
| M | |||
| K | K | ||
| Lead angle: 45° | Lead angle: 45° | ||
| N | |||
| Indexes per insert: 4 | Indexes per insert: 4 | ||
| S | Diameter: 100mm | ||
| Diameter: 20–160mm | |||
| H | |||
| Pages: H52–H57 | Pages: H58–H60 |
SuperFeed™ M4000 P Cartridge Milling System Max depth of cut: 6,35mm M (can be less depending on the cartridge) K
Lead angle: 90° N All front line insert styles N
available. Indexes per insert: S 1 edge per PCD cartridge Diameter: 125–315mm H
Diameter: Standard Platform 63–200mm Pages: H72–H74
Pages: H64–H68
