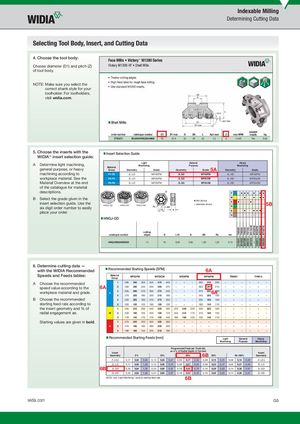

Determining Cutting Data
Selecting Tool Body, Insert, and Cutting Data
4. Choose the tool body:
Choose diameter (D1) and pitch (Z)
of tool body.
NOTE: Make sure you select the
correct shank style for your
toolholder. For toolholders, visit widia.com.
5. Choose the inserts with the n
Insert Selection Guide
WIDIA™ insert selection guide:
| A Determine light machining, | Light | General | Heavy | ||
| Machining | Purpose | Machining | |||
| Material | 5A |
| general purpose, or heavy | Group | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| machining according to | P1–P2 | .E..LD | WP40PM | .S..GD | WP40PM | .S..HD | WP40PM |
| workpiece material. See the | P3–P4 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD | WP35CM |
| Material Overview at the end | P5–P6 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD | WP35CM |
of the catalogue for material descriptions. P B Select the grade given in the M
fi rst choice
insert selection guide. Use the K 5B
alternate choice HNGJ-GD HNPJ-HD HNGJ-HD N six digit order number to easily place your order. S
n H
HNGJ-GD
cutting
| catalogue number | edges | D | L10 | S | BS | Rε | hm |
| HNGJ0905ANSNGD | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
6. Determine cutting data —
Recommended Starting Speeds [SFM] 6A
with the WIDIA Recommended
Speeds and Feeds tables: Material
| WP25PM | WP35CM | WS30PM | WP40PM | TN6501 | THM-U | |
| Group |
| A Choose the recommended | 1 | 395 | 340 | 325 | 545 | 475 | 445 | – | – | – | 355 | 310 | 295 | – | – | – | – | – | – | ||||
| speed value according to the | 6A | 2 | 330 | 290 | 240 | 335 | 305 | 275 | – | – | – | 300 | 260 | 215 | – | – | – | – | – | – | |||
| workpiece material and grade. | 3 | 305 | 260 | 210 | 305 | 275 | 245 | – | – | – | 275 | 235 6A190 | – | – | – | – | – | – | |||||
| P | |||||||||||||||||||||||
| 4 | 270 | 220 | 180 | 230 | 210 | 190 | – | – | – | 245 | 205 | 160 | – | – | – | – | – | – | |||||
| B Choose the recommended | 5 | 220 | 205 | 180 | 310 | 275 | 250 | – | – | – | 205 | 185 | 160 | – | – | – | – | – | – | ||||
| starting feed rate according to | 6 | 200 | 150 | 120 | 190 | 160 | 130 | – | – | – | 180 | 140 | 110 | – | – | – | – | – | – | ||||
| the insert geometry and % of | 1 | 245 | 215 | 200 | 245 | 220 | 185 | 270 | 240 | 220 | 235 | 205 | 185 | – | – | – | – | – | – | ||||
| radial engagement ae. | M | 2 | 220 | 190 | 155 | 220 | 190 | 170 | 245 | 215 | 175 | 210 | 180 | 150 | – | – | – | – | – | – | |||
| 3 | 170 | 145 | 115 | 175 | 155 | 140 | 185 | 160 | 125 | 155 | 140 | 110 | – | – | – | – | – | – | |||||
| Starting values are given in bold. | 1 | 275 | 245 | 220 | 355 | 320 | 290 | – | – | – | – | – | – | – | – | – | – | – | – | ||||
| K | 2 | 215 | 190 | 180 | 280 | 250 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | ||||
| 3 | 180 | 160 | 145 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – | – | – | – | |||||
| n Recommended Starting Feeds [mm] | |||||||||||||||||||||||
| Light | General | Heavy | |||||||||||||||||||||
| Machining | Purpose | Machining | |||||||||||||||||||||
| Programmed Feed per Tooth (fz) | |||||||||||||||||||||||
| as a % of Radial Depth of Cut (ae) | |||||||||||||||||||||||
| Insert | 6B | Insert | |||||||||||||||||||||
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | |||||||||||||||||
| .F..LDJ | 0,17 | 0,32 | 0,65 | 0,13 | 0,23 | 0,47 | 0,09 | 0,17 | 0,35 | 0,08 | 0,15 | 0,31 | 0,08 | 0,14 | 0,28 | .F..LDJ | |||||||
| .E..LD | 0,17 | 0,50 | 1,00 | 0,13 | 0,36 | 0,72 | 0,09 | 0,27 | 0,54 | 0,08 | 0,23 | 0,47 | 0,08 | 0,21 | 0,43 | .E..LD | |||||||
| 6B .S..GD | 0,33 | 0,84 | 1,35 | 0,24 | 0,60 | 0,97 | 0,18 | 0,45 | 0,72 | 0,16 | 0,39 | 0,63 | 0,14 | 0,36 | 0,57 | .S..GD | |||||||
| .S..HD | 0,33 | 0,84 | 1,35 | 0,24 | 0,60 | 0,97 | 0,18 | 0,45 | 0,72 | 0,16 | 0,39 | 0,63 | 0,14 | 0,36 | 0,57 | .S..HD |
NOTE: Use “Light Machining” value as starting feed rate. 6B
