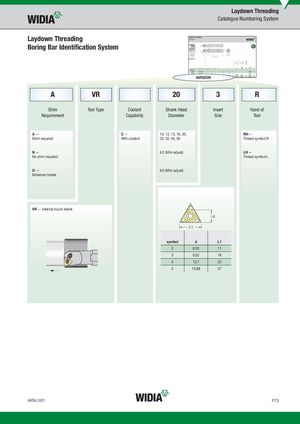

Laydown Threading
Boring Bar Identifi cation System
AVR203R
| A | VR | 20 | 3 | R | ||||
| Shim | Tool Type | Coolant | Shank Head | Insert | Hand of | |||
| Requirement | Capability | Diameter | Size | Tool |
| A — | C — | 10, 12, 13, 16, 20, | RH — |
| Shim required | With coolant | 25, 32, 40, 50 | Thread symbol R |
N — 6.2 (Mini adjust) LH —
No shim required Thread symbol L
O — 8.0 (Mini adjust) Miniature holder
VR — Internal round shank d
L1
| symbol | d | L1 | |
| 2 | 6,35 | 11 | |
| 3 | 9,52 | 16 | |
| 4 | 12,7 | 22 | |
| 5 | 15,88 | 27 |
